FWS-S5
|
Parameters |
PH5 Outdoor SMD series |
|
Pixel Pitch |
5mm |
|
Pixel Density |
40000 Dots/m2 |
|
Pixel Configuration |
1R1G1B |
|
LED Standard |
SMD2727 |
|
Module Size |
160×160mm |
|
Module Resolution |
32×32=1024(Dots) |
|
Brightness |
≥7500cd/m2 |
|

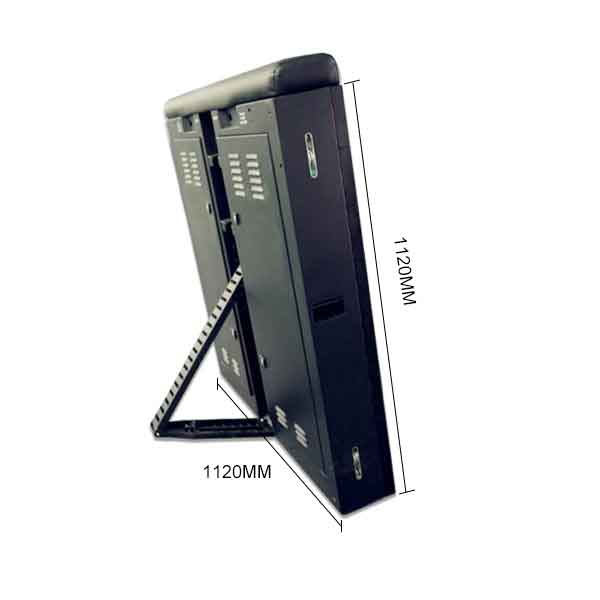

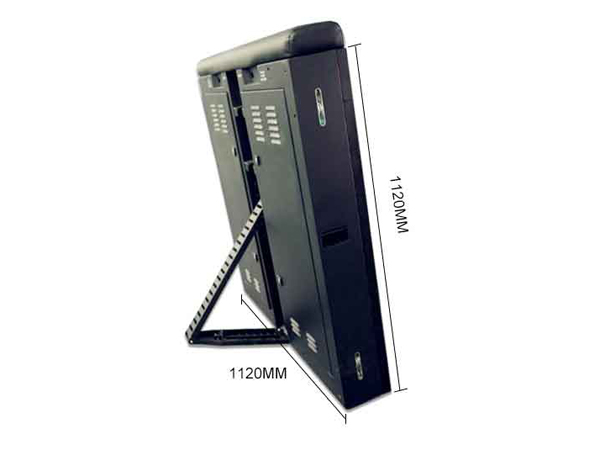

Cabinet Dimension(W*H*D) |
1120×1120×175mm |
|
Cabinet Resolution |
224×224=50176(Dots) |
|
Protection Level(front/back) |
IP66/IP54 |
|
Grey Scale Levels |
16bit |
|
Refresh Rate |
≥1000Hz |
|
Viewing Angle (H/V) |
H:120° V120° |
|
Drive Mode/Driver Position |
Constant driving 1/8 Scan，Combined diver board |
|
Consumption |
Max.consumption 1200w/m2 Average.consumption 360w/m2 |
|
Control Card Input |
DVI,USB,RJ45、HDMI（Sold separately) |
|
Comunication Type |
Net cable，3G、WIFI（Sold separately) |
|
The above content is for reference |
|
