FWS-S10
Parameters：
|
Parameters |
PH10 Outdoor DIP series |
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000 Dots/m2 |
|
Pixel Configuration |
1R1G1B |
|
LED Standard |
DIP346 |
|
Mosule Size |
160×160mm |
|
Module Resolution |
16×16=256(Dots) |
|
Brightness |
≥6500cd/㎡ |
|
Cabinet Dimension(W*H*D) |
1280×1280×185mm |
|
Cabinet Resolution |
128×128=16384(Dots) |
|
Grey Scale Levels |
16bit |
|
Protection Level(front/back) |
IP66/IP54 |
|
Refresh Rate |
≥1000Hz |
|
Viewing Angle (H/V) |
H:110° V:55° |
|
Drive Mode/Driver Position |
Constant driving 1/4 Scan，Separated diver board |
|
Consumption |
Max.consumption 600w/m2 Average.consumption 200w/m2 |
|
Control Card Input |
DVI,USB,RJ45、HDMI（Sold separately) |
|
Comunication Type |
Net cable，3G、WIFI（Sold separately) |
|
The above content is for reference |
|
Introduction
Features:
● High-quality and ultra-light cabinet with concealed side locks

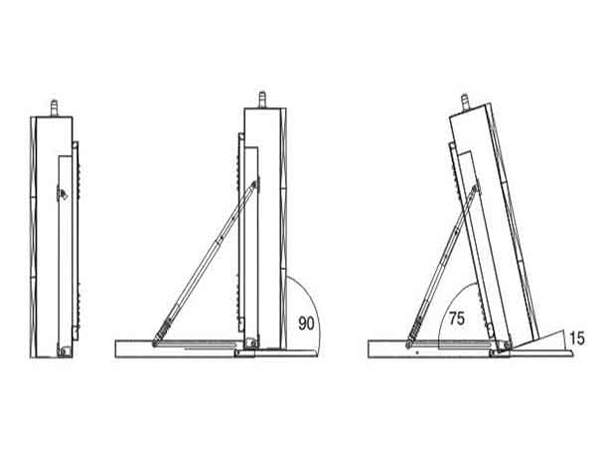

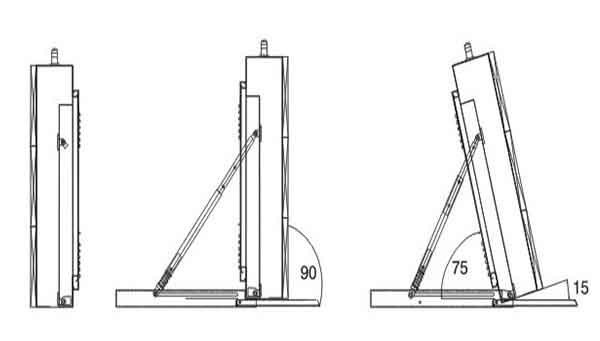

● 110°horizontal & 55°vertical viewing angle, flatness less than 0.2mm, the inclination degree of cabinet adjustable 70°~90°for best visual effects
● High quality anti-collision foam resistant to shock
● Back cover lock system to avoid faulty operation of the amateur
● Unique joint structure for free assembly and dismantlement of different display dimension
● Macromolecular flexible mask with glareless surface and better contrast ratio
● Lifetime free maintenance and offer online technical service.
