Product DescriptionInquiry
Parameters：
|
LED Lamp |
|
|
Type |
SMD2121 black body |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(250-300mcd) |
|
Chip parameters |
Green (520-525nm) IV:(450-550mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(100-120mcd) |
|
LED Module |
|
|
Pixel Pitch |
3mm |
|
Module Size |
192×96mm |
|
Module Resolution |
64×32=2048(Dots) |
|
Module Weight |
0.15kg |
|
LED Cabinet |
|
|
Display Dimension（W*H） |
960×1920mm |
|
The entire screen size(W*H*D) |
1040×2200×120mm |
|
Resolution W*H(dots/set) |
320×640 |
|
Base Size(W*H*D) |
1040×600×120mm |
|
The entire screen resolution |
204800dots |
|
Frame Frequency |
no less than 60 frame/sec |
|
Cabinets Material |
Steel |
|
Input Voltage |
AC110-220V±10%,50/60Hz |
|
Cabinet Weight |
135kg |
|
Output Voltage |
DC-5V,40A/60A/80A |
|
Brightness |
≥2000cd/㎡ |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Viewing Angle |
140(Horizontal),140(Vertical) |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Nearest Viewing Distance |
4m |
|
Brightness Adjustment |
256 color levels,can be adjusted manually and automatically optional |
|
Total Power Consumption (Max) |
2400W/H |
|
MTBF( mean time between failures) |
5000 hours |
|
Total Power Consumption (Average) |
700W/H |
|
Life-span |
100,000 hours |
|
Display Function |
Text,Graphics,Video |
|
Protection Level(front/back) |
IP65/IP43 |
|
Refresh Rate |
≥1000Hz |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Working Temperature |
-15℃~50℃ |
|
Drive Mode/Driver Position |
Constant driving 1/16 Scan，Combined diver board |
|
Humidity |
15%~85% |
|
Control System |
|
|
Control Mode |
Synchronization/Asynchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card,Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
Led show (FWS-ECSR ) |
|
Communication Type |
WIFI, Net cable，3G（Sold separately） |
|
Language |
Chinese，English |
|
Certificate |
CE,ROHS,FCC,ISO9001，TUV |
|
Control Card Input |
RJ45，HDMI，USB |
Introduction
Features:
●It features steel frame, tempered glass face, fashionable design and stable display performance.

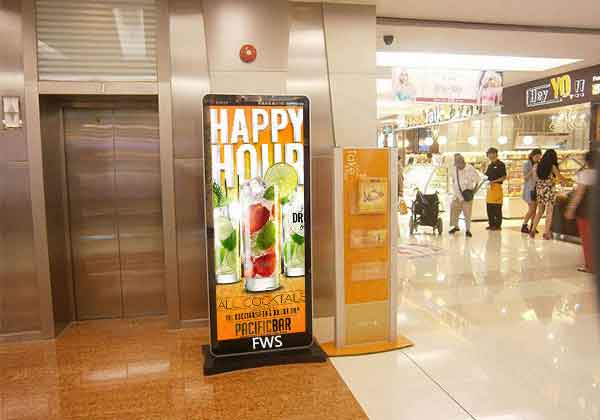

●A perfect match for hotels and can also be used at bank, store, airport, hotel, station, summit, theatre and other indoor areas.
●It's lighter than traditional advertising players which make it easy to transport and install.
●The surface is coated with a smooth and seamless tempered glass that present clear pictures and more safety.
●The high contrast ration screen shows your advertisements with great clarity.
●The display can adjust the brightness automatically according to the system.
●The Best Indoor Advertising is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.
●Best Indoor Advertising is very easy to operate - just plug it into any device and play.
●Connect your Apple device by Apple STB and control many different devices. Remain in full control with its unique controlling features and powerful remote control.
