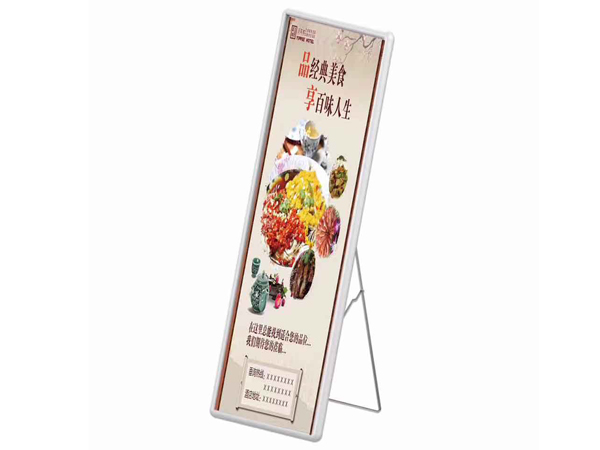

LED Poster

LED Lamp

Type

SMD2121 black body

Brand

Epistar

Arrangement

1R1G1B

Chip parameters

Red (625-630nm) IV:(65-115mcd)

Chip parameters

Green (523-526nm) IV:(215-265mcd)

Chip parameters

Blue (470-473nm) IV:(33-83mcd)

LED Module

Pixel Pitch

2.5mm

Module Size

160×160mm

Module Resolution

64×64=4096(Dots)

Module Weight

0.48kg

LED Cabinet

Pixel Density

160000 Dots/sqm

Frame Frequency

no less than 60 frame/sec

Cabinet Resolution

256×256=65536(Dots)

Input Voltage

AC110-220V±10%, 50/60Hz

Cabinet Dimension(W*H*D)

640×640×95mm

Output Voltage

DC-5V, 40A/60A/80A

Module Quanty /Cabinet

4×4=16(Pcs)

Color Grayscale

16bit

Gray Scale per Color

65536 level

Cabinets Material

Aluminum-magnesium alloy Cabinet

Color Processing

R(1024)×G(1024)×B(1024)

Cabinet Weight

13kg

Brightness Adjustment

256 color levels, can be adjusted manually and automatically optional

Brightness

>2200cd/sqm

MTBF( mean time between failures)

5000 hours

Viewing Angle

140(Horizontal), 140(Vertical)

Life-span

100, 000 hours

Nearest Viewing Distance

5m

Protection Level(front/back)

IP31/IP54

Power Consumption (Max)

1500 w/sqm

Power Consumption (Average)

450 w/sqm

Malfunction Dot Rate

less than 0.0001

Working Temperature

-15^oC-50^oC

Display Function

Text, Graphics, Video

Humidity

15%-85%

Refresh Rate

>1000Hz

Drive Mode/Driver Position

Constant driving 1/16 Scan, Combined diver board

Control System

Control Mode

Synchronization/Asynchronization

Input Signal

AVI/MPG/MPEG/TXT.etc

Control System

Sending Card, Receiving Card, Receiving HUB

PC Operating System

Microsoft Windows 10 , Windows 7 and XP

Software

LED Studio ( FWS-linsn )

Communication Type

Net cable; 3G, WIFI(Sold separately)

Language

Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German

Certificate

CE, ROHS, FCC, ISO9001, TUV

Control Card Input

DVI, USB, RJ45, HDMI(Sold separately)
