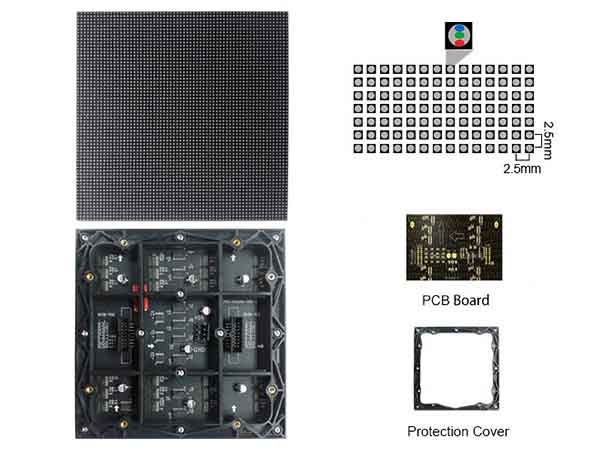

P2.5 Indoor SMD LED Module

●The 2.5mm pixel pitch provides great quality output and makes it lightweight.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.
●The control system of module features a sending card, receiving card and receiving hub. Easy to operate manual power supply voltage selection switch can be used to adjust supply voltage 110V and 220V.
●We provide most cost effective LED display module on the ex-factory price.
●The PH2.5 Indoor SMD Full Color LED Module is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
●It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

Inquiry

Product DescriptionInquiry

Technical Specifications	IFSM2.5-A	IFSM2.5-B
Pixel Pitch	2.5mm
Type	SMD2121 black body
Arrangement	1R1G1B
Chip parameters	Red (625-630nm) IV:(65-115mcd)
Chip parameters	Green (523-526nm) IV:(215-265mcd)
Chip parameters	Blue (470-473nm) IV:(33-83mcd)
Module Resolution	64×64=4096(Dots)	64×64=4096(Dots)
Module Size	160×160mm	160×160mm
Module Weight	0.48kg	0.5kg
Module Input Interface	HUB-75E	HUB-75
Pixel Density	160000 Dots/sqm
Brightness	﹥1200/sqm	﹥2000/sqm
Viewing Angle	140(Horizontal),140(Vertical)
Nearest Viewing Distance	5m
Power Consumption (Max)	1300 w/sqm	1500 w/sqm
Power Consumption (Average)	400 w/sqm	450 w/sqm
Input Voltage	AC110-220V±10%,50/60Hz
Color Grayscale	16bit
Gray Scale per Color	65536 level
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Life-span	100,000 hours
Working Temperature	-15℃~50℃
Humidity	15%~85%
Drive Mode/Driver Position	Constant driving 1/32 Scan，Combined diver board	Constant driving 1/16 Scan，Combined diver board
Input Signal	AVI/MPG/MPEG/TXT.etc
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( FWS-linsn )
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Communication Type	WIFI, Net cable，3G（Sold separately）
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV

P2.5 Indoor SMD LED Module
Introduction
Features:
●The 2.5mm pixel pitch provides great quality output and makes it lightweight.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.
●The control system of module features a sending card, receiving card and receiving hub. Easy to operate manual power supply voltage selection switch can be used to adjust supply voltage 110V and 220V.
●We provide most cost effective LED display module on the ex-factory price.
●The PH2.5 Indoor SMD Full Color LED Module is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
●It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.
●The PH2.5 Indoor SMD Full Color LED Module supports different input devices and multiple signal input.
●Can be connected to PC, DV, DVD players etc. Also accepts multiple signal inputs such as AVI, MPG, MPEF, TXT and much more.
●The PH2.5 Indoor SMD Full Color LED Module features high resolution HD screen which offers best quality output

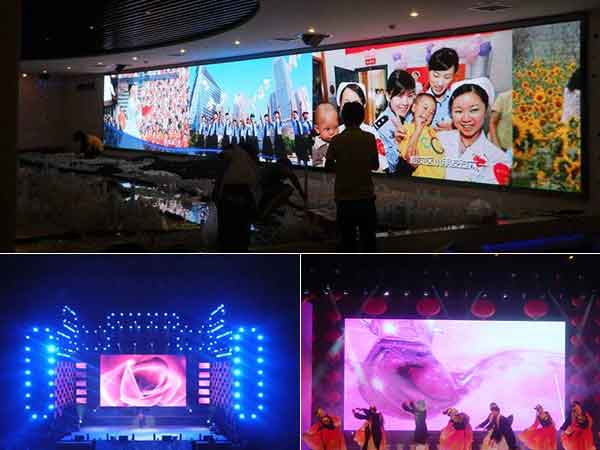

Case：
