P6 Indoor SMD LED Module

●The 6mm pixel pitch provides great quality output and makes it lightweight.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.
●The control system of module features a sending card, receiving card and receiving hub. Easy to operate manual power supply voltage selection switch can be used to adjust supply voltage 110V and 220V.
●We provide most cost effective LED display module on the ex-factory price.
●The PH6 Indoor SMD Full Color LED Module is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
●It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

Inquiry

Product DescriptionInquiry

P6 Indoor SMD LED Module
Parameters

Technical Specifications	IFSM6-A	IFSM6-B	IFSM6-C
Pixel Pitch	6mm
Type	SMD3528
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(250-300mcd )
Chip parameters	Green (520-525nm) IV:(450-550mcd)
Chip parameters	Blue (470-475nm) IV:(100-120mcd)
Module Resolution	32×32=1024(Dots)	64×32=2048(Dots)	32×16=512(Dots)

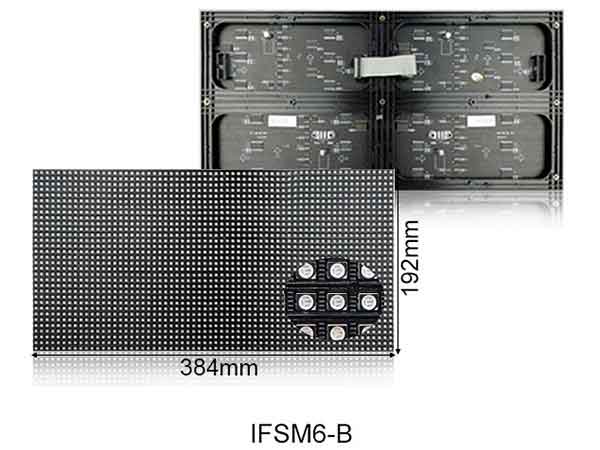

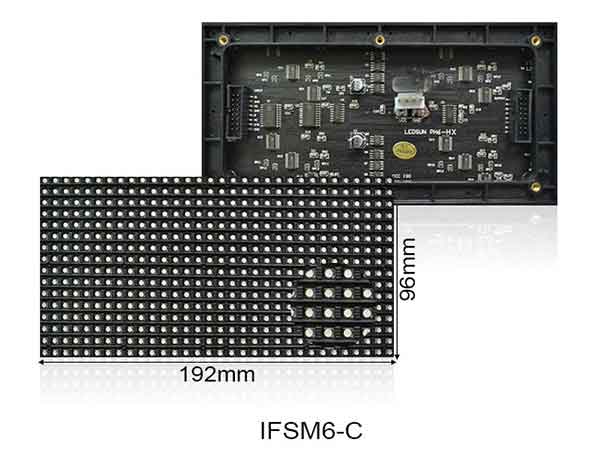

Module Size	192×192mm	384×192mm	192×96mm
Module Weight	0.25kg	0.45kg	0.2kg
Module Input Interface	HUB-75
Pixel Density	27777 Dots/㎡
Brightness	≥2400cd/㎡	≥1500cd/㎡	≥3500cd/㎡
Viewing Angle	140(Horizontal),140(Vertical)
Nearest Viewing Distance	9m
Power Consumption (Max)	800 w/㎡
Power Consumption (Average)	240 w/㎡		250 w/㎡
Refresh Rate	>1000HZ		>800HZ
Input Voltage	AC110-220V±10%,50/60Hz
Grey Scale Levels	16bit
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
MTBF( mean time between failures)	5000 hours
Life-span	100,000 hours
Protection Level(front/back)	IP31/IP54		IP43/IP54
Working Temperature	-15℃~50℃		-30℃~50℃
Humidity	15%~85%
Display Function	Text,Graphics,Video
Frame Frequency	no less than 60 frame/sec
Drive Mode/Driver Position	Constant driving 1/8 Scan，Combined diver board	Constant driving 1/16 Scan，Combined diver board	Constant driving 1/4 Scan，Combined diver board
Input Signal	AVI/MPG/MPEG/TXT.etc
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio (FWS-linsn )
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Communication Type	WIFI, Net cable，3G（Sold separately）
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV

Introduction
Features:
●The 6mm pixel pitch provides great quality output and makes it lightweight.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.
●The control system of module features a sending card, receiving card and receiving hub. Easy to operate manual power supply voltage selection switch can be used to adjust supply voltage 110V and 220V.
●We provide most cost effective LED display module on the ex-factory price.
●The PH6 Indoor SMD Full Color LED Module is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
●It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.
●The PH6 Indoor SMD Full Color LED Module supports different input devices and multiple signal input.
●Can be connected to PC, DV, DVD players etc. Also accepts multiple signal inputs such as AVI, MPG, MPEF, TXT and much more.
●The PH6 Indoor SMD Full Color LED Module features high resolution HD screen which offers best quality output.

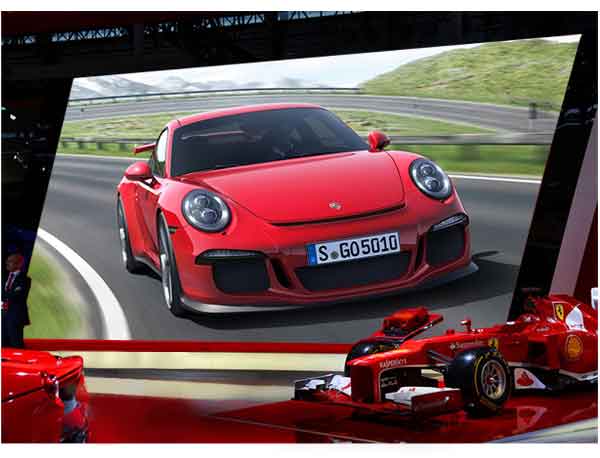

Case：
