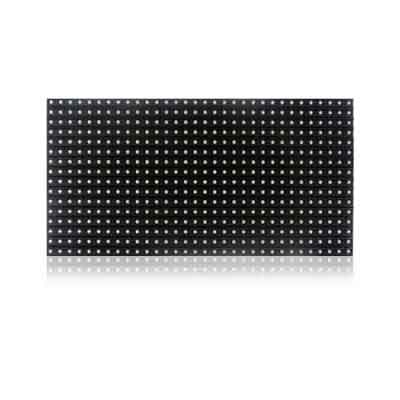

P10 Outdoor SMD LED Module

●PH10 Outdoor DIP Full Color Module is a suitable module for outdoor advertising.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.
●Its strong body and shield protects it from damage. Rectangle module makes it easy to transport and install. High resolution screen guarantees best quality output.
●If it comes to product price value, we provide you with the best affordable ex-factory rate which is approximately 40 percent less than the price set by the distributor that means a much cost effective.
●Best quality components are used to manufacture the Outdoor LED Screen Module for Sale, and we purchase the components from most reputed vendors.
●Installing at outdoor places require the displays to produce high brightness outputs.

Inquiry

Product DescriptionInquiry

P10 Outdoor SMD LED Module
Parameters

Technical Specifications	OFSM10-A	OFSM10-B

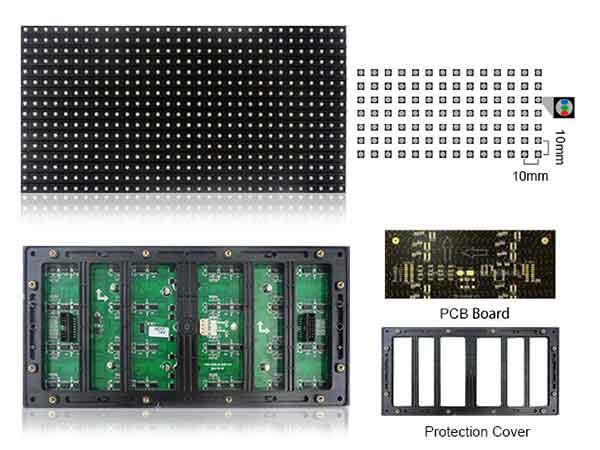

Pixel Pitch	10mm
Type	SMD3535
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)
Module Resolution	32×16=512(Dots)
Module Size	320×160mm
Module Weight	0.5kg
Module Input Interface	HUB-75
Pixel Density	10000 Dots/㎡
Brightness	≥7500cd/㎡	≥5000cd/㎡
Viewing Angle	120(Horizontal),120(Vertical)
Nearest Viewing Distance	13m
Power Consumption (Max)	1000 w/㎡	950 w/㎡
Power Consumption (Average)	300 w/㎡	250 w/㎡
Refresh Rate	≥800Hz
Input Voltage	AC110-220V±10%,50/60Hz
Color Grayscale	16bit
Gray Scale per Color	65536 level
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Life-span	100,000 hours
Working Temperature	-15℃~50℃
Humidity	15%~85%
Drive Mode/Driver Position	Constant driving 1/2 Scan，Combined diver board	Constant driving 1/4 Scan，Combined diver board
Input Signal	AVI/MPG/MPEG/TXT.etc
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( fws-linsn )
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Communication Type	WIFI, Net cable，3G（Sold separately）
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV

Introduction
Features:
●PH10 Outdoor DIP Full Color Module is a suitable module for outdoor advertising.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.
●Its strong body and shield protects it from damage. Rectangle module makes it easy to transport and install. High resolution screen guarantees best quality output.
●If it comes to product price value, we provide you with the best affordable ex-factory rate which is approximately 40 percent less than the price set by the distributor that means a much cost effective.
●Best quality components are used to manufacture the Outdoor LED Screen Module for Sale, and we purchase the components from most reputed vendors.
●Installing at outdoor places require the displays to produce high brightness outputs.
●The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption.
●Can be used at stage, bank, promotion, exhibition, highway, station, KTV, stadium, airport and all outdoor places
