Product DescriptionInquiry
Parameters
|
LED Lamp |
|
|
Type |
SMD2727 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(800-960mcd) |
|
Chip parameters |
Green (520-525nm) IV:(1350-1650mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(330-400mcd) |
|
LED Module |
|
|
Pixel Pitch |
6.25mm |
|
Module Size(W*H) |
250×250mm |
|
Module Resolution |
40×40=1600(Dots) |
|
Module Weight |
1kg |
|
LED Cabinet |
|
|
Pixel Density |
255600 Dots/sqm |
|
Cabinet Dimension(W*H*D) |
500×500×70mm |
|
Module Quanty /Cabinet |
2×2=4(Pcs) |
|
Cabinets Material |
Aluminum-magnesium alloy Cabinet |
|
Gap Between Panels |
seamless tiled display |
|
Cabinet Weight |
16kg |
|
Brightness |
>4800cd/sqm |
|
Viewing Angle |
140(Horizontal), 120(Vertical) |
|
Nearest Viewing Distance |
6m |
|
Power Consumption (Max) |
1600 w/sqm |
|
Power Consumption (Average) |
450 w/sqm |
|
Refresh Rate |
>1000Hz |
|
Drive Mode/Driver Position |
Constant driving 1/16 Scan, Combined diver board |
|
Display Function |
Text, Graphics, Video |
|
Frame Frequency |
no less than 60 frame/sec |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Grey Scale Levels |
16bit |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
MTBF( mean time between failures) |
5000 hours |
|
Life-span |
100, 000 hours |
|
Protection Level(front/back) |
IP66/IP54 |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Working Temperature |
-15oC~50oC |
|
Humidity |
15%~85% |
|
Control System |
|
|
Control Method |
Synchronization/Asynchronization |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
Software |
LED Studio (FWS-linsn ) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
|
Control Card Input |
DVI, USB, RJ45, HDMI(Sold separately) |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
PC Operating System |
Microsoft Windows 10, XP and Windows 7 |
|
Communication Type |
Net cable, 3G, WIFI(Sold separately) |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
Introdcution
Features:

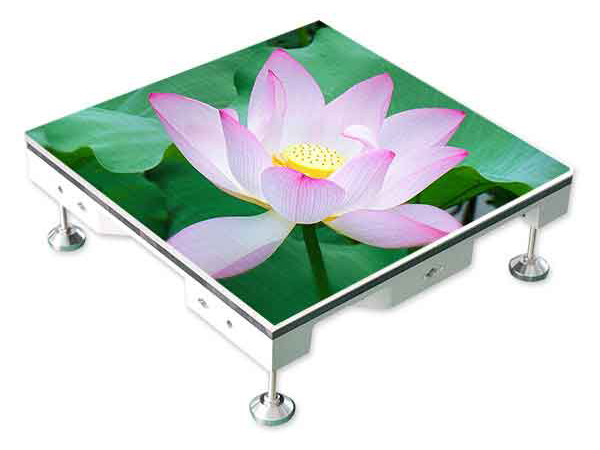

●P6.25 outdoor dance floor led display adopted synchronous control system which achieve high definition and gentle display effect, combine stage virtual scene and performance perfectly.

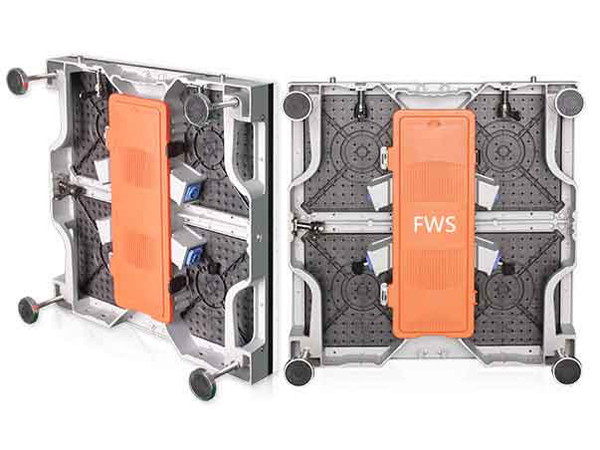

● It adopted high-strength acrylic glass mask and strong aluminum-magnesium alloy case which features high anti-impact performance. Can be trampled on freely. The load-bearing arrange is 500kg/sqm.
● LED display can cool down sufficiently ensure working stable. The temperature of mask is very low without any other assist heat dissipation device, natural wind cooling without any noise.

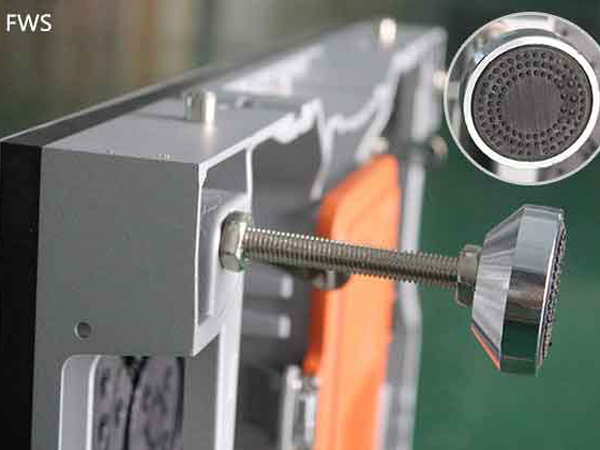

● The support feet can be adjusted freely, stable and safe.
● Multi-functional led display not only can be set up on the ground as dance floor used but also stand up assemble as rental led display. One led display can be used for two led display freely.
● IP66 protection rate, no need to worry about the hard using environment, 24 hours working available.
● This led display is suitable used for bar, KTV, product launch, T stage show, concert, party and outdoor square etc.

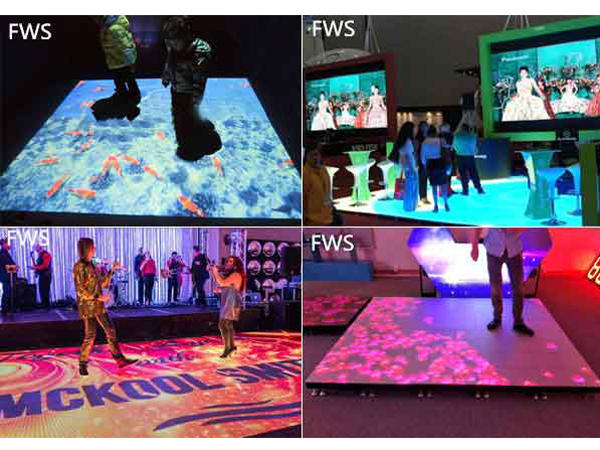

Case：
