P4.81 Indoor Rental LED Screen

●The P4.81 Concert LED Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
●The Indoor LED Video Wall is only very thin which makes it ultra-lightweight and space saving.

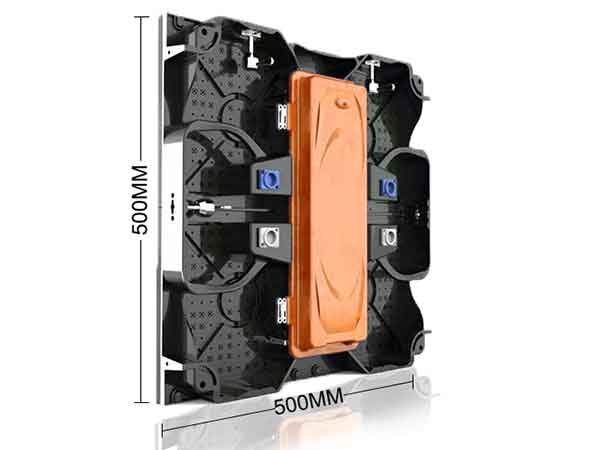

●The 500x500mm module is assembled using four 250x250mm modules and aluminum-magnesium cabinet.
●The quick-lock feature requires no technical skills to install and uninstall.
●The high brightness and high definition features of the Indoor LED Video Wall ensures great quality pictures - making it a perfect fit for stage, hotel, promotion, station, stadium and other places.
●The P4.81 Concert LED Screen is known for its silence operation and low power consumption.
●The Stage Curtain LED Screen is known for its silence operation and low power consumption.

Inquiry

Product DescriptionInquiry

Parameters

LED Lamp
Type	SMD2121 black body
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(250-300mcd )
Chip parameters	Green (520-525nm) IV:(450-550mcd)
Chip parameters	Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch	4.81mm
Module Size	250×250mm
Module Resolution	52×52=2704(Dots)
Module Weight	0.2kg
LED Cabinet
Pixel Density	43222 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	104×104=10816(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz

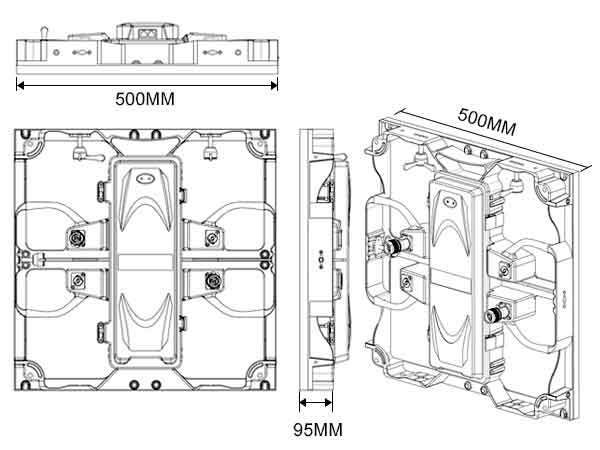

Cabinet Dimension(WHD)	500×500×95mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	2×2=4(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Aluminum-magnesium alloy Cabinet
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	6.25kg
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>1000cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	140(Horizontal), 140(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	8m
Protection Level(front/back)	IP43/IP54
Power Consumption (Max)	1000 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	350 w/sqm
Working Temperature	-15^oC-50^oC
Display Function	Text, Graphics, Video
Humidity	15%-85%
Refresh Rate	>1800Hz
Drive Mode/Driver Position	Constant driving 1/13 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio (FWS-linsn)
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)

Introduction
Features:

Case

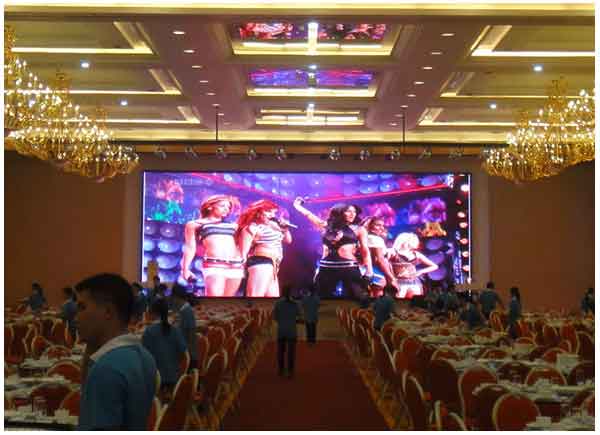

●The Indoor LED Video Wall is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.
●The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
