Product DescriptionInquiry
Parameters
|
LED Lamp |
|
|
Type |
SMD3528 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(250-300mcd ) |
|
Chip parameters |
Green (520-525nm) IV:(450-550mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(100-120mcd) |
|
LED Module |
|
|
Pixel Pitch |
10mm |
|

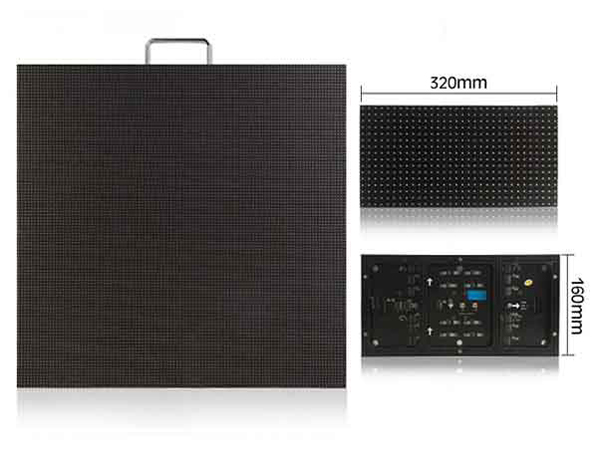

Module Size |
320×160mm |
|
Module Resolution |
32×16=512(Dots) |
|
Module Weight |
0.4kg |
|

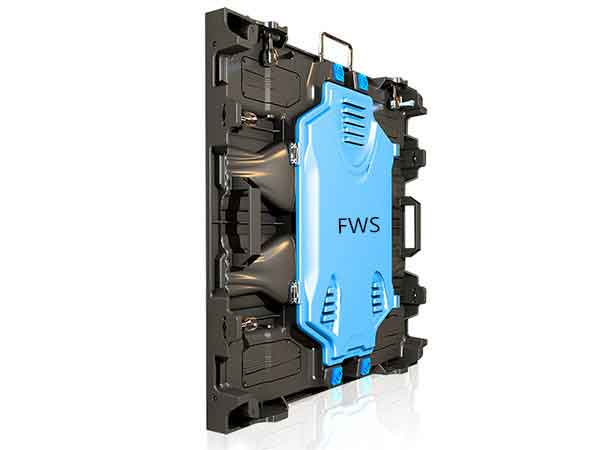

LED Cabinet |
|
|
Pixel Density |
10000 Dots/sqm |
|
Frame Frequency |
no less than 60 frame/sec |
|
Cabinet Resolution |
64×64=4096(Dots) |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|
Cabinet Dimension(W*H*D) |
640×640×95mm |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Module Quantify /Cabinet |
2×4=8(Pcs) |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Cabinets Material |
Aluminum-magnesium alloy Cabinet |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Cabinet Weight |
8kg |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
Brightness |
>900cd/sqm |
|
MTBF( mean time between failures) |
5000 hours |
|
Viewing Angle |
140(Horizontal), 140(Vertical) |
|
Life-span |
100, 000 hours |
|
Nearest Viewing Distance |
13m |
|
Protection Level(front/back) |
IP43/IP54 |
|
Power Consumption (Max) |
600 w/sqm |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Power Consumption (Average) |
200 w/sqm |
|
Working Temperature |
-15oC-50oC |
|
Display Function |
Text, Graphics, Video |
|
Humidity |
15%-85% |
|
Refresh Rate |
>1800Hz |
|
Drive Mode/Driver Position |
Constant driving 1/8 Scan, Combined diver board |
|
Control System |
|
|
Control Mode |
Synchronization/Asynchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
LED Studio (FWS-linsn ) |
|
Communication Type |
Net cable; 3G, WIFI(Sold separately) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
|
Control Card Input |
DVI, USB; RJ45, HDMI(Sold separately) |
Introduction
Features:
●The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display.
●The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.
●The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install.
●High resolution pixel pitch offers excellent quality pictures and display performance.Suitable brightness makes it ideal for indoor advertising.
●The thin size and ultra-lightweight modules makes it easy to carry, transport and install.
●The high brightness and high definition features of the Lightweight LED Screen for Show ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
●The Lightweight LED Screen for Show is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
●The display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
●The Lightweight LED Screen for Show is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, banks etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

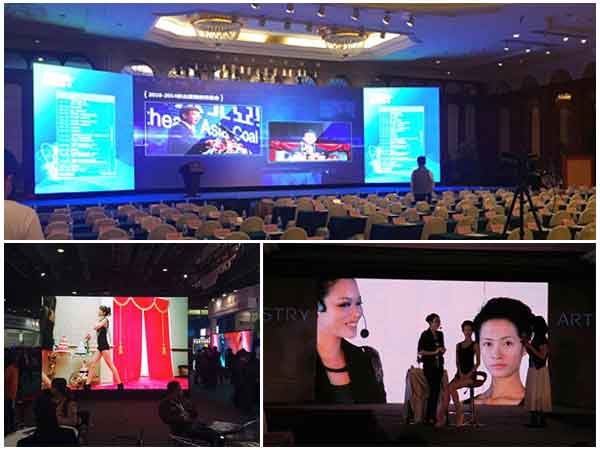

Case
