Parameters
|
LED Lamp |
|
|
Type |
SMD3528 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(250-300mcd ) |
|
Chip parameters |
Green (520-525nm) IV:(450-550mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(100-120mcd) |
|
LED Module |
|
|
Pixel Pitch |
6mm |
|
Module Size |
192×192mm |
|
Module Resolution |
32×32=1024(Dots) |
|
Module Weight |
0.25kg |
|
LED Cabinet |
|
|
Pixel Density |
27777 Dots/sqm |
|
Frame Frequency |
no less than 60 frame/sec |
|
Cabinet Resolution |
96×96=9216(Dots) |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|

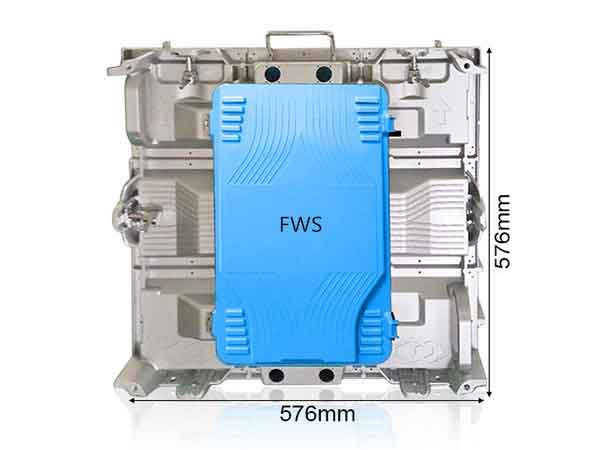

Cabinet Dimension(W*H*D) |
576×576×95mm |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Module Quanty /Cabinet |
3×3=9(Pcs) |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Cabinets Material |
Aluminum-magnesium alloy Cabinet |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Cabinet Weight |
7.4kg |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
Brightness |
>1500cd/sqm |
|
MTBF( mean time between failures) |
5000 hours |
|
Viewing Angle |
140(Horizontal), 140(Vertical) |
|
Life-span |
100, 000 hours |
|
Nearest Viewing Distance |
9m |
|
Protection Level(front/back) |
IP43/IP54 |
|
Power Consumption (Max) |
800 w/sqm |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Power Consumption (Average) |
240 w/sqm |
|
Working Temperature |
-15oC-50oC |
|
Display Function |
Text, Graphics, Video |
|
Humidity |
15%-85% |
|
Refresh Rate |
>1000Hz |
|
Drive Mode/Driver Position |
Constant driving 1/16 Scan, Combined diver board |
|
Control System |
|
|
Control Mode |
Synchronization/Asynchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
LED Studio ( FWS-linsn ) |
|
Communication Type |
Net cable; 3G, WIFI(Sold separately) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
|
Control Card Input |
DVI, USB; RJ45, HDMI(Sold separately) |
Introduction
Features:
●High definition picture quality expands the reach, allowing more people to enjoy the display. It's multipurpose and can be used at banks, concerts, hotels, stations, summits and conference etc.
●Each module of China Indoor Rental LED Display weighs only 0.25kg and everything is installed inside, making it really lightweight.
●The luminance and chromaticity of each LED lamp is set to provide over 99% highly unified consistency.
●Replace module within minutes - just with a screwdriver. The small size and light weight of the module makes it easy to carry and install.
●China Indoor Rental LED Display features 140 horizontal and 140 vertical angles - so you will get a super quality image in a super large range.
●High refresh rate of over 1000Hz ensure you gain outstanding, flicker-free picture for ultra-smooth user experience.
●The China Indoor Rental Display can be utilized for a varied range of applications, like displaying the advertisements and for training purpose.
●You get the modules, cabinet, package box and other accessories for a single price, so no need of paying individually for anything.

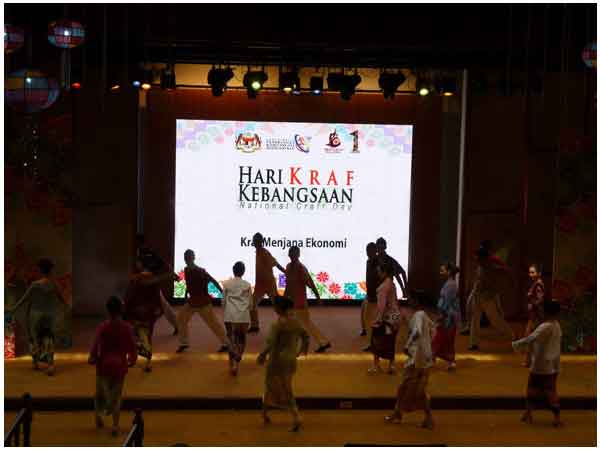

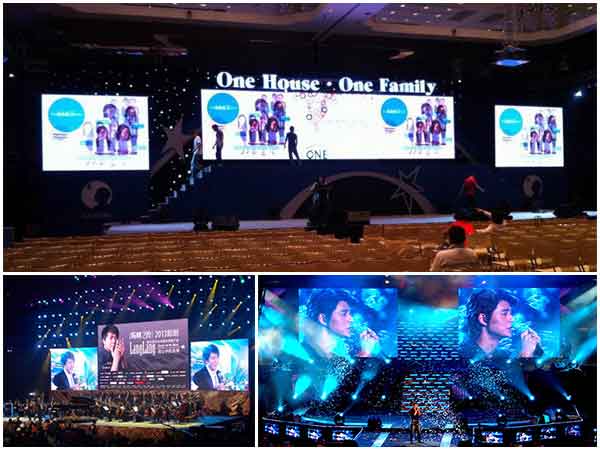

Case
