P3.91Indoor SMD led display
Parameters
|
Item |
Value |
|
|
Pixel Pitch(mm) |
3.9 |
|
|
Pixel Density(pixels/㎡) |
65746 |
|
|
Viewing Angle(Deg.) |
140(H)/140(V) |
|
|
Brightness(nits) |
≥1000 |
|
|
Grey Level(bit) |
12/14/16 |
|
|
Refresh Rate(Hz) |
1920/2880 |
|
|
Panel Size(mm) |
500(W)×750(H)×95(D) |
500(W)×1000(H)×95(D) |
|
Panel Size(inch) |
19.68(W)×29.53(H)×2.75(D) |
19.68(W)×39.37(H)×2.75(D) |
|
Panel Resolution(pixels) |
128 ×192 |
128×256 |
|
Panel Weight(kg/㎡) |
27-35 |
|
|
Panel Type and Material |
Iron |
|
|
Module Size(mm) |
250(W)×250(H) |
|
|
Module Size(inch) |
9.84(W)×9.84(H) |
|
|
Module Resolution(pixels) |
64×64 |
|
|
Protection Grade |
IP30 |
|
|
Serviceability |
Front/Rear |
|
|
Avg.Power Consumption(W/㎡) |
185(AC) |
|
|
Max.Power Consumption(W/㎡) |
550(AC) |
|
|
Brightness Adjustment |
Manual/Auto/Programmable |
|
|
Operating Temp/Humidity(℃/%RH) |
-20~+50/10~90 |
|
|
Storage Temp/Humidity(℃/%RH) |
-40~+60/0~90 |
|
|
Lifetime(hours) |
50000 |
|
|
Compliant Standard |
CE,FCC,RoHS |
|
|
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Fws |
||
Introduction
Two cabinet size
Pixel pitch: 3.9 mm
Pixel configuration: SMD
Brightness: ≥1000 adjustable
Refresh rate: ≥1920 Hz
Panel dimension: 500×750×70mm/500×1000×70mm
Ultra Slim&Light Panel
70mm thick panel with a weight of 12kg/14kg pushes itself to the limit, which saves cost of supporting structure and transportation .
Convenient Maintenance
Module, power supply, receiving card can all be maintained from the front,and front-accessible design reduces module replacement time down to 5s
Excellnt Dispaly Effect
1920Hz high refresh rate, uniform color and 160° super wide viewing angle all guarantee an ultimate visual experience.
Front Maintenance Illustration

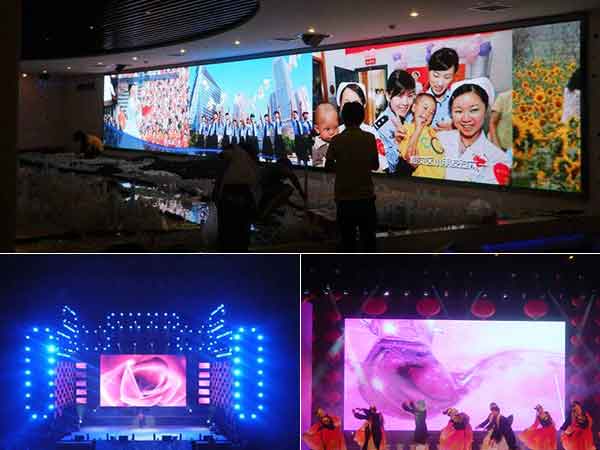

Case
