Parameters
|
Item |
Value |
|
Pixel Pitch(mm) |
3 |
|
Pixel Density(pixels/㎡) |
111111 |
|
Viewing Angle(Deg.) |
H: 140/ V: 140 |
|
Brightness(nits) |
1200 |
|
Grey Level(bit) |
13 |
|
Refresh Rate(Hz) |
1920 |
|
Panel Dimension(mm) |
576(W)x576(H) |
|
Panel Dimension(inch) |
22.68(W)x22.68(H) |
|
Panel Resolution(pixels) |
192x192 |
|
Panel Weight(kg) |
11 |
|
Panel Type and Material |
Die-casting aluminum |
|
Module Size(mm) |
288(W)x288(H) |
|
Module Size(inch) |
11.34(W)x11.34(H) |
|
Protection Grade(Front/Rear) |
IP20/IP20(Front/Rear) |
|
Serviceability |
Front/Rear |
|
Avg.Power Consumption(W/㎡) |
250(AC) |
|
Max.Power Consumption(W/㎡) |
750(AC) |
|
Brightness Adjustment |
Manual/Auto/Programmable |
|
Operating Temp/Humidity(℃/%RH) |
-20~+40/10~90 |
|
Storage Temp/Humidity(℃/%RH) |
-40~+60/10~80 |
|
Lifetime(hours) |
≥50000(Nomal Temp) |
|
Compliant Standard |
CE,FCC,RoHS |
|
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Fws |
|
Introduction

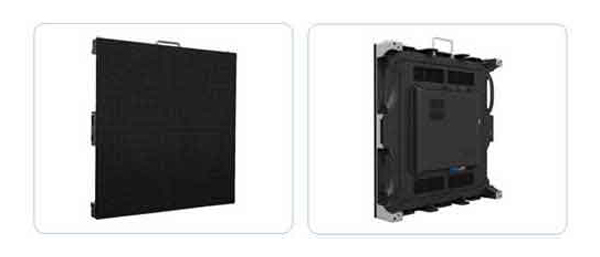

· Support for both front and rear maintenance.
· Uniform color and high contrast ensure clear and sharp picture .

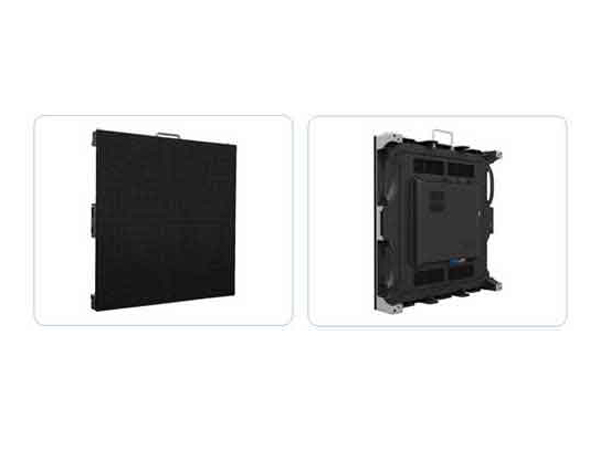

· High precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display.
· Fan-less design with good dissipation guarantees noise-free effect.
· Light and slim panel is easy to handle and transport.
· High stability and reliability prolong the lifespan of LED display.
