Parameters
|
LED Lamp |
|
|
Type |
SMD3535 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(800-960mcd) |
|
Chip parameters |
Green (520-525nm) IV:(1350-1650mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(330-400mcd) |
|
LED Module |
|
|
Pixel Pitch |
8mm |
|

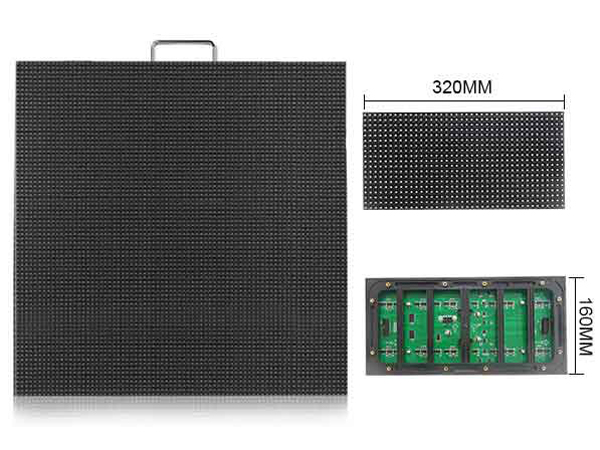

Module Size(W*H) |
320×160mm |
|
Module Resolution |
40×20=800(Dots) |
|
Module Weight |
0.5kg |
|
LED Cabinet |
|
|
Pixel Density |
15625 Dots/sqm |
|

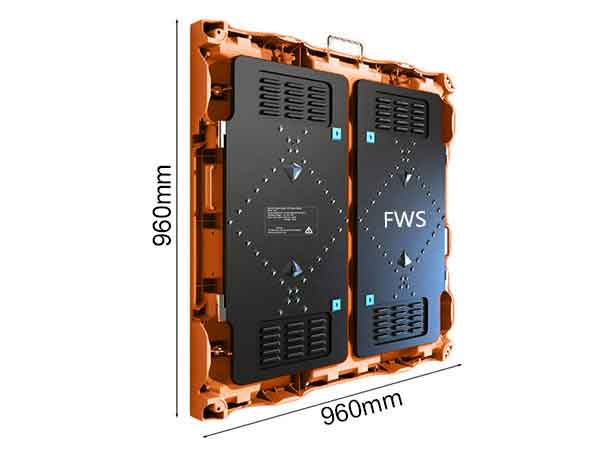

Cabinet Dimension(W*H*D) |
960×960×105mm |
|
Cabinet Resolution |
120×120=14400(Dots) |
|
Module Quanty /Cabinet |
3×6=18(Pcs) |
|
Cabinets Material |
Aluminum-magnesium alloy Cabinet |
|
Cabinet Weight |
25kg |
|
Brightness |
>7500cd/sqm |
|
Viewing Angle |
120(Horizontal), 120(Vertical) |
|
Nearest Viewing Distance |
11m |
|
Power Consumption (Max) |
1000 w/sqm |
|
Power Consumption (Average) |
300 w/sqm |
|
Refresh Rate |
>800Hz |
|
Drive Mode/Driver Position |
Constant driving 1/5 Scan, Combined diver board |
|
Display Function |
Text, Graphics, Video |
|
Frame Frequency |
no less than 60 frame/sec |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
MTBF( mean time between failures) |
5000 hours |
|
Life-span |
100, 000 hours |
|
Protection Level(front/back) |
IP66/IP54 |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Working Temperature |
-30oC~50oC |
|
Humidity |
15%~85% |
|
Control System |
|
|
Control Method |
Synchronization/Asynchronization |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
Software |
LED Studio(FWS-linsn) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
|
Control Card Input |
DVI, USB, RJ45, HDMI(Sold separately) |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Communication Type |
Net cable, 3G, WIFI(Sold separately) |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
Introduction
Features:
● Aluminum magnesium alloy cabinet never deformation and features with beautiful appearance and lightweight.
● Ultra-slim cabinet decline the volume of flight case and transportation cost.
● Seamless splice make more cabinet in one without any gap.
● Fast lock and spring plunger design for fast install and dismantle. Especially suitable for stage show, concert, promotion, exhibition and sport game live use.
● Die-casting aluminum magnesium alloy feature with low power consumption, automatic heat dissipation.
● Power has been inset in the cabinet and signal work lamp help you fast detect fault and fast fix it.
● IP66 waterproof rate make it suitable for any outdoor environment.
● Lifetime free maintenance and offer online technical service.

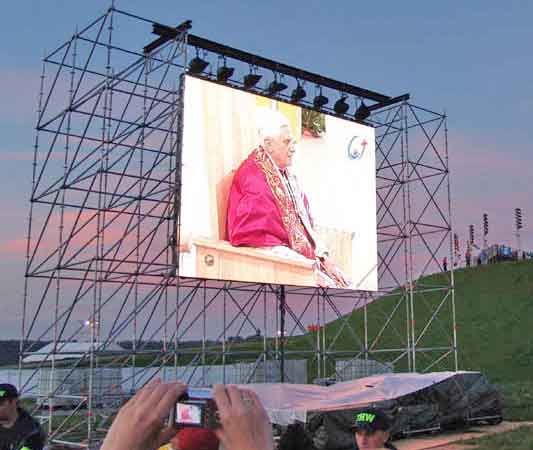

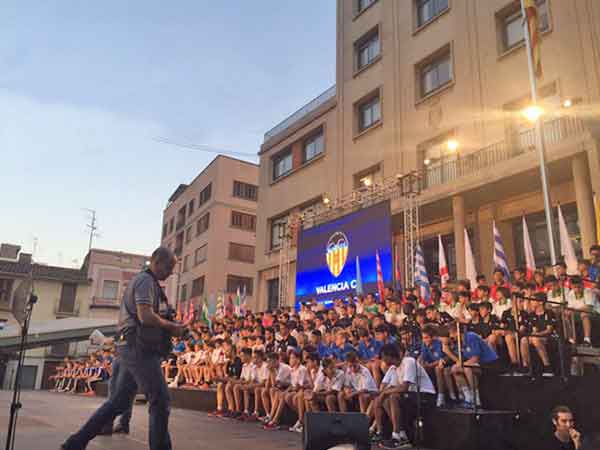

Case
