P4 Outdoor Anti-low Temperature and Energy Saving LED Display
Parameters
|
LED Lamp |
|
|
Type |
DIP2825 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(1000-1200mcd) |
|
Chip parameters |
Green (520-525nm) IV:(2000-2500mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(500-650mcd) |
|

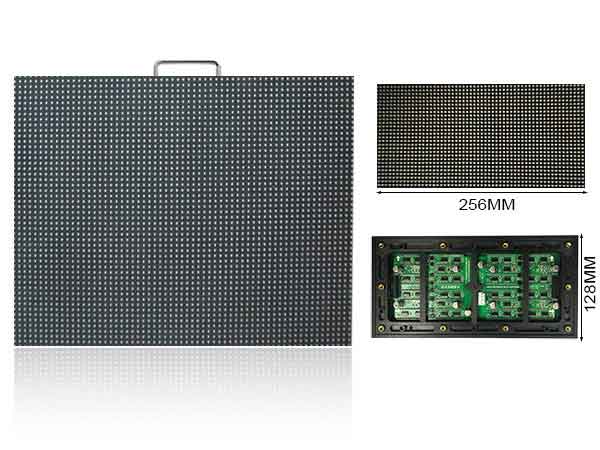

LED Module |
|
|
Pixel Pitch |
4mm |
|
Module Size(W*H*D) |
256×128×25mm |
|
Module Resolution |
64×32=2048(Dots) |
|
Module Weight |
0.45kg |
|
LED Cabinet |
|
|
Pixel Density |
62500 Dots/sqm |
|
Cabinet Dimension(W*H*D) |
1024×768×95mm |
|
Cabinet Resolution |
256×192=49152(Dots) |
|
Module Quanty /Cabinet |
4×6=24(Pcs) |
|
Cabinets Material |
Aluminum-magnesium alloy Cabinet |
|
Cabinet Weight |
25kg |
|
Brightness White Balance |
>6500cd/sqm |
|
Viewing Angle |
120(Horizontal), 70(Vertical) |
|
Nearest Viewing Distance |
7m |
|
Power Consumption (Max) |
900 w/sqm |
|
Power Consumption (Average) |
300 w/sqm |
|
Refresh Rate |
>2500Hz |
|
Drive Mode/Driver Position |
Constant driving 1/12 Scan, Separated diver board |
|
Display Function |
Text, Graphics, Video |
|
Frame Frequency |
no less than 60 frame/sec |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|
Output Voltage |
DC-4.2V, 40A/60A/80A |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
MTBF( mean time between failures) |
5000 hours |
|
Life-span |
100, 000 hours |
|
Protection Level(front/back) |
IP66/IP54 |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Storage Temperature |
-35oC~85oC |
|
Working Temperature |
-35oC~50oC |
|
Humidity |
15%~85% |
|
Thermal Discharge |
Fan cooled |
|
Control System |
|
|
Control Method |
Synchronization |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
Software |
LED Studio (FWS-linsn ) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
|
Control Card Input |
DVI, USB, RJ45, HDMI(Sold separately) |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Communication Type |
Net cable |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
Introduction
Features:
●The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience.
●Highly usable for outdoor advertising such as seaside, swimming pools, water parks, outdoor places and low temperature conditions.
●The double door aluminum cabinet and best quality wire keeps it safe, and its high resolution screen presents big and clear images.
●The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install.
●Adopted MBI constant current driver which can make refresh rate up to 3000Hz load with single receiving card in one cabinet.High quality product ensure stable and clear image output.
●The Anti-Low Temperature LED Screen features a Front IP66 waterproof grade which protects the display from any damage.
●The outdoor advertising LED display works seamlessly in a wide temperature range of -35 degree to 50 degrees.
●The display features a wide viewing angle of horizontal 120° and vertical 70° which reaches more viewers.

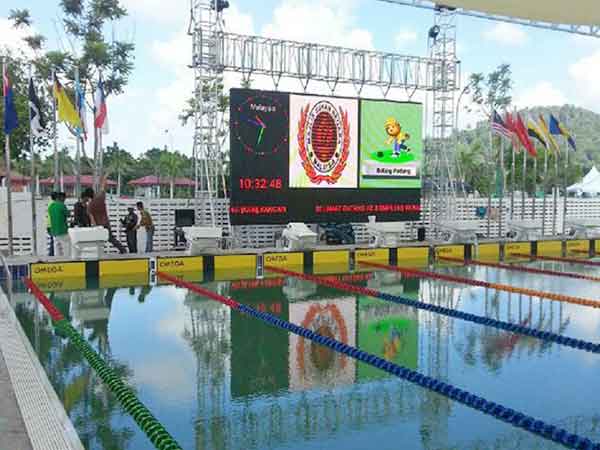

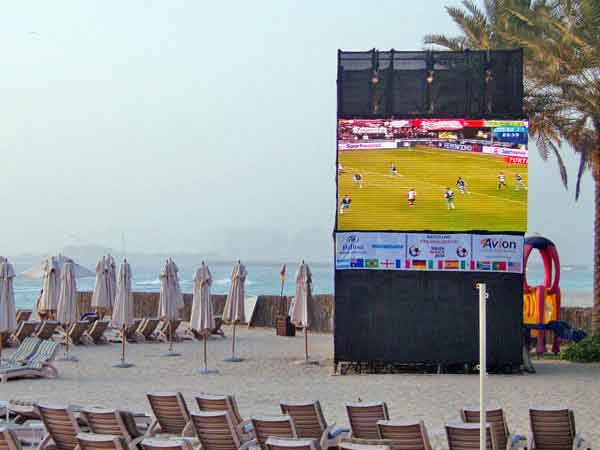

Case
