P4 Outdoor SMD 3 in 1 LED Display

●Highly applicable for bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.
●The cabinet of SMD LED Screen features unique rugged design which makes it easy to carry and install.
●PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen.
●PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen. f
●Adjust the brightness according to the area of installation.
●The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
Inquiry

Product DescriptionInquiry

P4 Outdoor SMD 3 in 1 LED Display
Parameters

LED Lamp

Type

SMD1921

Brand

Epistar

Arrangement

1R1G1B

Chip parameters

Red (620-625nm)IV:(800-960mcd)

Chip parameters

Green (520-525nm)IV:(1350-1650mcd)

Chip parameters

Blue ( 470-475nm)IV:(330-400mcd)

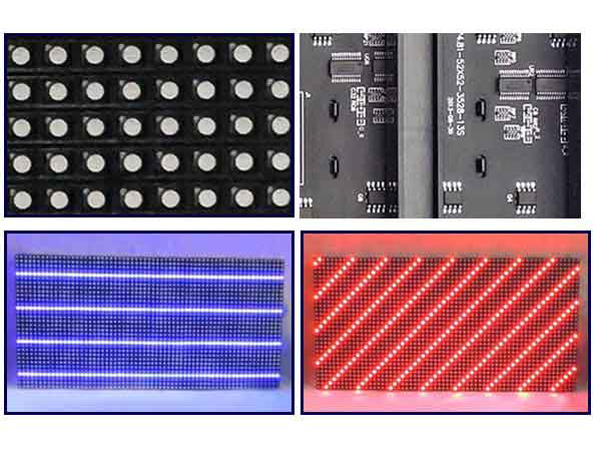

LED Module

Pixel Pitch

4mm

Module Size(W*H)

256×128mm

Module Resolution

64×32=2048(Dots)

Module Weight

0.3kg

LED Cabinet

Pixel Density

62500 Dots/sqm

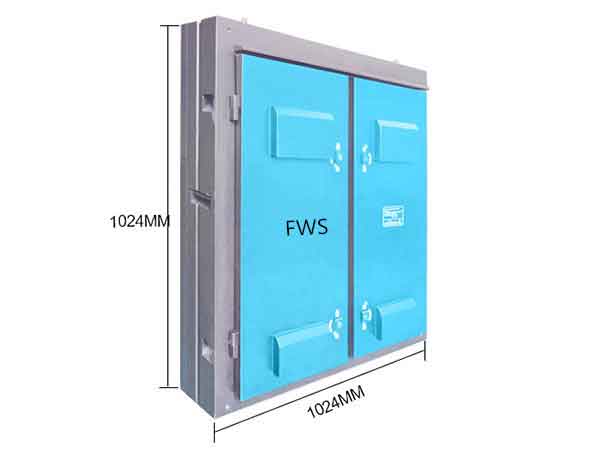

Cabinet Dimension(W*H*D)

1024×1024×175mm

Cabinet Resolution

256×256=65536(Dots)

Module Quanty /Cabinet

4×8=32(Pcs)

Cabinets Material

Steel

Cabinet Weight

40kg

Brightness

>7000cd/sqm

Viewing Angle

120(Horizontal),140(Vertical)

Nearest Viewing Distance

7m

Power Consumption (Max)

1100 w/sqm

Power Consumption (Average)

300 w/sqm

Refresh Rate

>1000Hz

Drive Mode/Driver Position

Constant driving 1/8 Scan,Combined diver board

Display Function

Text,Graphics,Video

Frame Frequency

no less than 60 frame/sec

Input Voltage

AC110-220V±10%,50/60Hz

Output Voltage

DC-5V,40A/60A/80A

Grey Scale Levels

16bit

Color Processing

R(1024)×G(1024)×B(1024)

Brightness Adjustment

256 color levels,can be adjusted manually and automatically optional

MTBF( mean time between failures)

5000 hours

Life-span

100,000 hours

Protection Level(front/back)

IP66/IP54

Malfunction Dot Rate

less than 0.0001

Working Temperature

-30oC~50oC

Humidity

15%~85%

Control System

Control Method

Synchronization/Asynchronization

Control System

Sending Card, Receiving Card,Receiving HUB

Software

LED Studio ( FWS-linsn )

Language

Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German

Control Card Input

DVI,USB,RJ45, HDMI(Sold separately)

Input Signal

AVI/MPG/MPEG/TXT.etc

PC Operating System

Microsoft Windows 10 ,Windows 7 and XP

Communication Type

Net cable,3G, WIFI(Sold separately)

Certificate

CE,ROHS,FCC,ISO9001,TUV



Introduction
Features:
●Highly applicable for bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.
●The cabinet of SMD LED Screen features unique rugged design which makes it easy to carry and install.
●PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen.
●PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen. f
●Adjust the brightness according to the area of installation.
●The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
●The Outdoor SMD LED Display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
●You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.

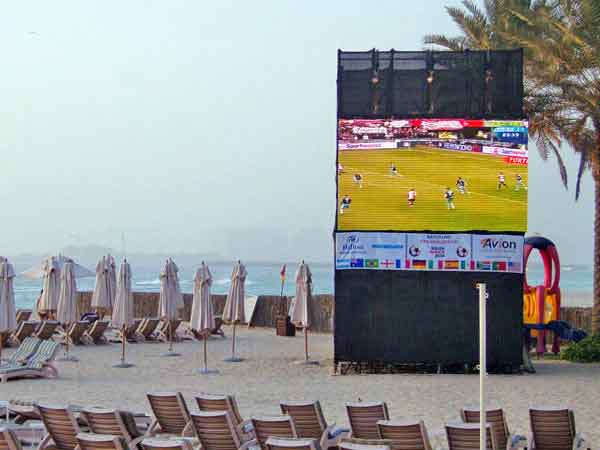

Case
