Product DescriptionInquiry
Parameters
|
LED Lamp |
|
|
Type |
DIP346 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(1000-1200mcd) |
|
Chip parameters |
Green (520-525nm) IV:(2000-2500mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(500-650mcd) |
|

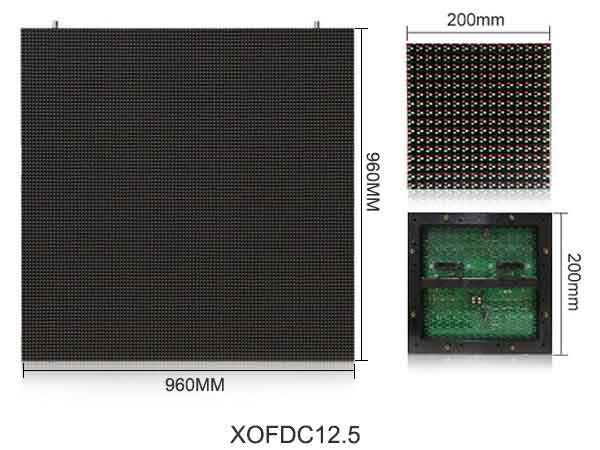

LED Module |
|
|
Pixel Pitch |
12.5mm |
|
Module Size |
200×200mm |
|
Module Resolution |
16×16=256(Dots) |
|
Module Weight |
0.6kg |
|
LED Cabinet |
|
|
Pixel Density |
6400 Dots/sqm |
|
Cabinet Dimension(W*H*D) |
1000×1000×105mm |
|
Cabinet Resolution |
80×80=6400(Dots) |
|
Module Quanty /Cabinet |
5×5=25(Pcs) |
|
Cabinets Material |
Aluminum |
|
Cabinet Weight |
31kg |
|
Brightness |
>6500cd/sqm |
|
Viewing Angle |
120(Horizontal), 70(Vertical) |
|
Nearest Viewing Distance |
15m |
|
Power Consumption (Max) |
600 w/sqm |
|
Power Consumption (Average) |
300 w/sqm |
|
Refresh Rate |
>1000Hz |
|
Drive Mode/Driver Position |
Constant driving 1/4 Scan, Combined diver board |
|
Display Function |
Text, Graphics, Video |
|
Frame Frequency |
no less than 60 frame/sec |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|
Output Voltage |
DC-4.2V, 40A/60A/80A |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
MTBF( mean time between failures) |
5000 hours |
|
Life-span |
100, 000 hours |
|
Protection Level(front/back) |
IP66/IP54 |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Storage Temperature |
-35oC~85oC |
|
Working Temperature |
-35oC~50oC |
|
Humidity |
15%~85% |
|
Thermal Discharge |
Fan cooled |
|
Control System |
|
|
Control Method |
Synchronization |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
Software |
LED Studio(FWS-linsn) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
|
Control Card Input |
DVI, USB, RJ45, HDMI(Sold separately) |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Communication Type |
Net cable |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
Introduction
Features:
● IP 66 waterproof rate, all outdoor environments available.
● High brightness, clear image can be showed even in strong sunshine. The brightness can automatic adjust according to the ambit circumstance, so it can avoid light pollution at the night and save energy.
● High quality drive IC and led lamp ensure stable play system and long lifespan.
● Synchronous and asynchronous control system available, customized according to your requirement.
● Several broadcast formats support, such as AVI/MPG/MPEG/TXT etc. Network cable, Wi-Fi and 3G remote control help you change advertising content easily.
● The width and height proportion of each cabinet are designed for optimal display effect. The size of cabinet also can be customized according to your requirement.
● Any installation structure available, such as pillar structure, wall mounted structure and flood stand structure etc.
● Lifetime free maintenance and offer online technical service.
