Parameters
|
LED Lamp |
|
|
Type |
SMD2727 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(800-960mcd) |
|
Chip parameters |
Green (520-525nm) IV:(1350-1650mcd) |
|
Chip parameters |
Blue ( 470-475nm) IV:(330-400mcd) |
|

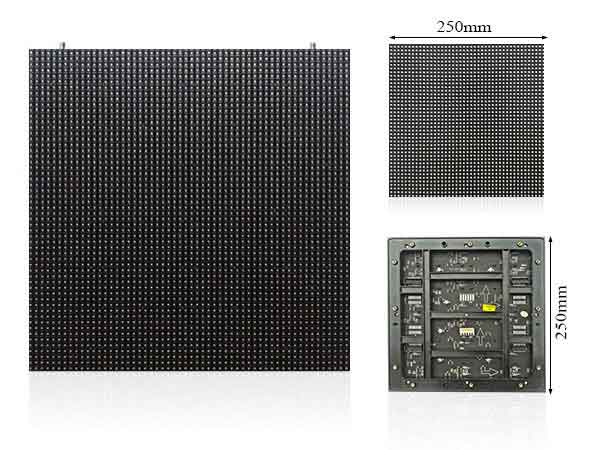

LED Module |
|
|
Pixel Pitch |
4.81mm |
|
Module Size(W*H) |
250×250mm |
|
Module Resolution |
52×52=2704(Dots) |
|
Module Weight |
0.8kg |
|
LED Cabinet |
|
|
Pixel Density |
43222 Dots/sqm |
|
Cabinet Dimension(W*H*D) |
1000×1000×175mm |
|
Cabinet Resolution |
208×208=43264(Dots) |
|
Module Quanty /Cabinet |
4×4=16(Pcs) |
|
Cabinets Material |
Steel |
|
Cabinet Weight |
37kg |
|
Brightness |
>6500cd/sqm |
|
Viewing Angle |
120(Horizontal), 120(Vertical) |
|
Nearest Viewing Distance |
8m |
|
Power Consumption (Max) |
1200 w/sqm |
|
Power Consumption (Average) |
300 w/sqm |
|
Refresh Rate |
>1000Hz |
|
Drive Mode/Driver Position |
Constant driving 1/13 Scan, Combined diver board |
|
Display Function |
Text, Graphics, Video |
|
Frame Frequency |
no less than 60 frame/sec |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
MTBF( mean time between failures) |
5000 hours |
|
Life-span |
100, 000 hours |
|
Protection Level(front/back) |
IP66/IP54 |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Working Temperature |
-30oC~50oC |
|
Humidity |
15%~85% |
|
Control System |
|
|
Control Method |
Synchronization/Asynchronization |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
Software |
LED Studio (FWS-linsn ) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
|
Control Card Input |
DVI, USB, RJ45, HDMI(Sold separately) |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Communication Type |
Net cable, 3G, WIFI(Sold separately) |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
Introduction
Features:
●Highly applicable for bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.
●The cabinet of SMD LED Screen features unique rugged design which makes it easy to carry and install.
●PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen.
●PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen. f
●Adjust the brightness according to the area of installation.
●The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
●The Outdoor SMD LED Display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
●You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places

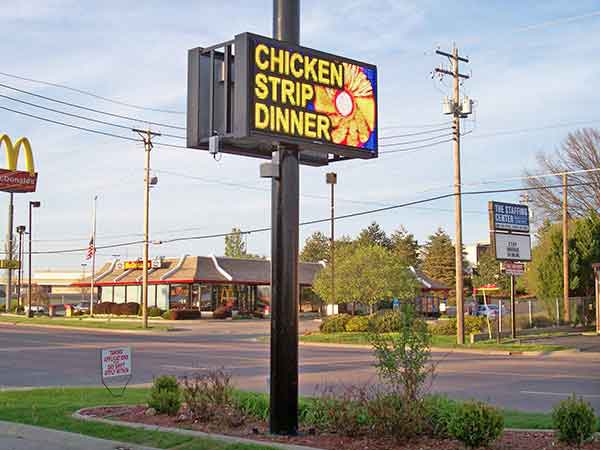

Case
