P5.21 Transparent LED Screen

● Because the pixel pitch is big on the indoor transparent led display, it is a kind of product that between normal led display and led lighting products.
● Several cabinets can be connected as a full color lighting wall with unlimited shapes, it’s mainly used for big lighting projects. It can also be used for playing video images.
● The advertising projects can be treated as lighting projects with this transparent led display so as to escape from the government approval procedures.
● It has light weight, good wind resistance, good heat emission capacity and good seismic behavior. The cost for the auxiliary framework is cheap, cabinets keep silent running without fans, and the maintenance job is easy both from front side or from back side.

Inquiry

Product DescriptionInquiry

Parameters：

LED Lamp
Pixel Pitch	5.21mm
Type	SMD3011
Chip parameters	Red:(625-630nm) IV:(300-350mcd)
Chip parameters	Green:(523-526nm) IV:(1200-1500mcd)
Chip parameters	Blue:(470-473nm) IV:(200-250mcd)
LED Module
Pixel Density	36838 Dots/sqm
module layout	Horizontal/Vertical
Module Size	250×250mm
module Resolution	48×48dot

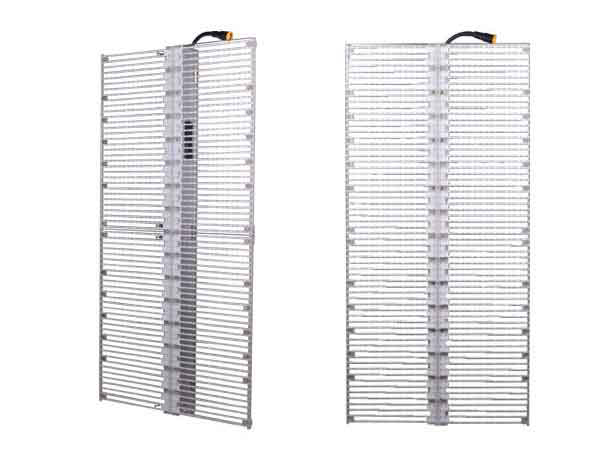

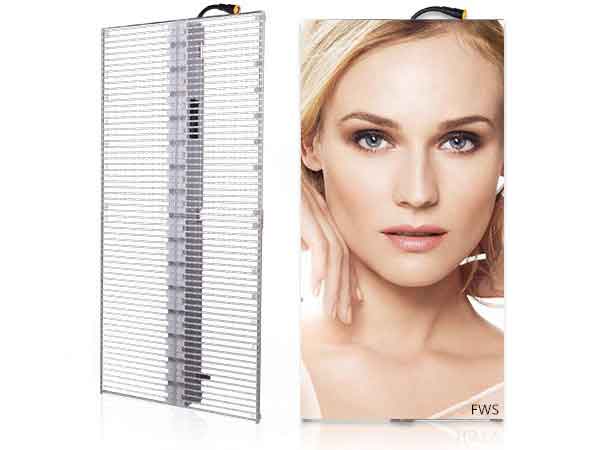

LED Cabinet

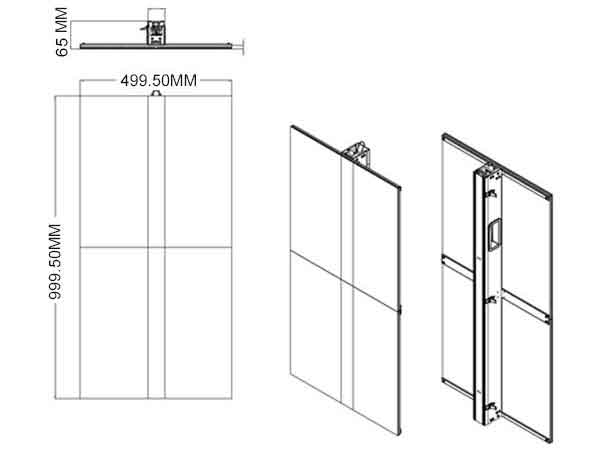

Cabinet Size	500×1000×65mm
Transparency	70%
Cabinet Resolution	96×192dot
Cabinet Weight	7kg/Panel
IP Rating( front/back)	IP30
Brightness	>4000CD/sqm
Viewing Angle(H/V)	140^o/140^o
Viewing Distance	>6m
Grey Scale Levels	16bit
Max.Power Consumption	850 W/sqm
Ave.Power Consumption	340 W/sqm
Refresh Rate	>1800Hz
Environment	Indoor
Drive Mode/Driver Position	Constant driving 1/6 Scan
Display Function	Text,Graphics,Video
Input Voltage	AC110-220V±10%,50/60Hz
Operating Temperature	- 20^oC~50^oC
Operating Humidity	10%~90%
MTBF( mean time between failures)	5000 hours
Operating Life	100,000 hours
Control System
Control Method	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 10, XP and Windows 7
Communication Type	Net cable; 3G, WIFI(Sold separately)
Software	Nova Studio( FWS-Nova)
Language	Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese，German, Russian
Certificate	CE,ROHS,FCC,ISO9001, TUV
Control Card Inputs	DVI,HDMI

Introduction

Features:

● Because the pixel pitch is big on the indoor transparent led display, it is a kind of product that between normal led display and led lighting products.

● Several cabinets can be connected as a full color lighting wall with unlimited shapes, it’s mainly used for big lighting projects. It can also be used for playing video images.

● The advertising projects can be treated as lighting projects with this transparent led display so as to escape from the government approval procedures.

● It has light weight, good wind resistance, good heat emission capacity and good seismic behavior. The cost for the auxiliary framework is cheap, cabinets keep silent running without fans, and the maintenance job is easy both from front side or from back side.

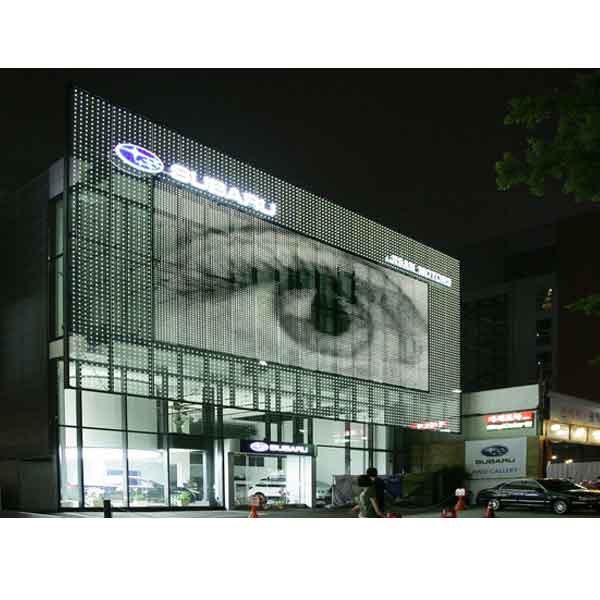

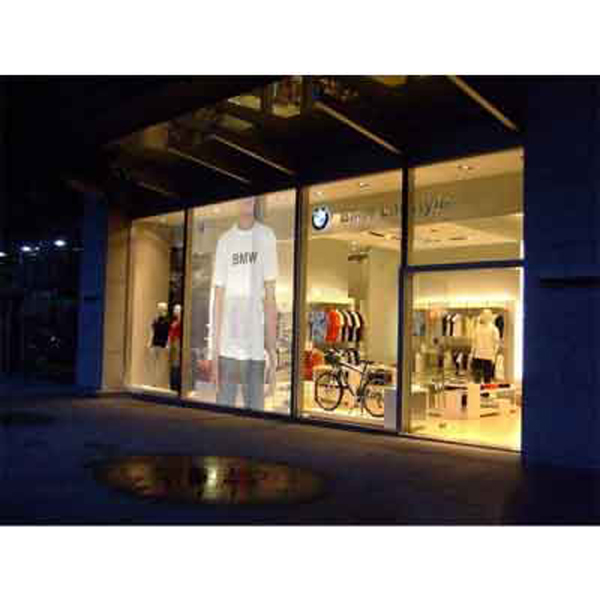

Case：
