Product DescriptionInquiry
Parameters
|
LED Lamp |
|
|
Type |
SMD2727 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(800-960mcd) |
|
Chip parameters |
Green (520-525nm) IV:(1350-1650mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(330-400mcd) |
|
LED Module |
|
|

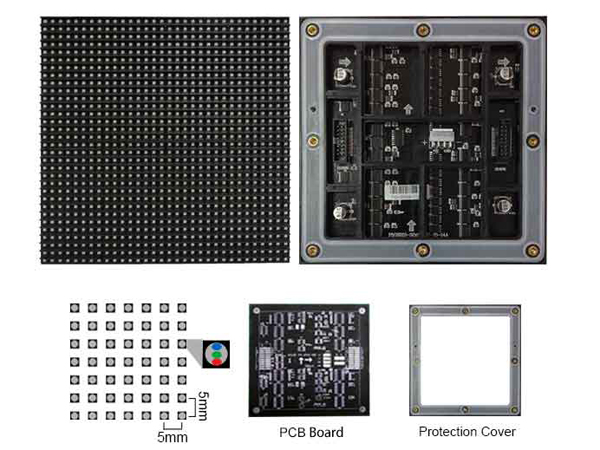

Pixel Pitch |
5mm |
|
Module Size |
160×160mm |
|
Module Resolution |
32×32=1024(Dots) |
|
Module Weight |
0.2kg |
|
Module Input Interface |
HUB-75 |
|
LED Cabinet |
|
|
Pixel Density |
40000 Dots/㎡ |
|
Frame Frequency |
no less than 60 frame/sec |
|
Brightness |
≥7500cd/㎡ |
|
Input Voltage |
AC110-220V±10%,50/60Hz |
|
Viewing Angle |
120(Horizontal),120(Vertical) |
|
Output Voltage |
DC-5V,40A/60A/80A |
|
Nearest Viewing Distance |
8m |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Power Consumption (Max) |
1200 w/㎡ |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Power Consumption (Average) |
360 w/㎡ |
|
Brightness Adjustment |
256 color levels,can be adjusted manually and automatically optional |
|
Display Function |
Text,Graphics,Video |
|
MTBF( mean time between failures) |
5000 hours |
|
Refresh Rate |
≥1000Hz |
|
Life-span |
100,000 hours |
|
Working Temperature |
-15℃~50℃ |
|
Protection Level(front/back) |
IP65/IP54 |
|
Humidity |
15%~85% |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Drive Mode/Driver Position |
Constant driving 1/8 Scan，Combined diver board |
|
Control System |
|
|
Control Mode |
Synchronization/Asynchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card,Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
LED Studio (FWS-linsn ) |
|
Communication Type |
Net cable，3G、WIFI（Sold separately) |
|
Language |
Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German |
|
Certificate |
CE,ROHS,FCC,ISO9001，TUV |
|
Control Card Input |
DVI,USB,RJ45、HDMI（Sold separately |
Introduction
Features:
● A dedicated guard prevents the screen from any damage and environmental effects.
●Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang.

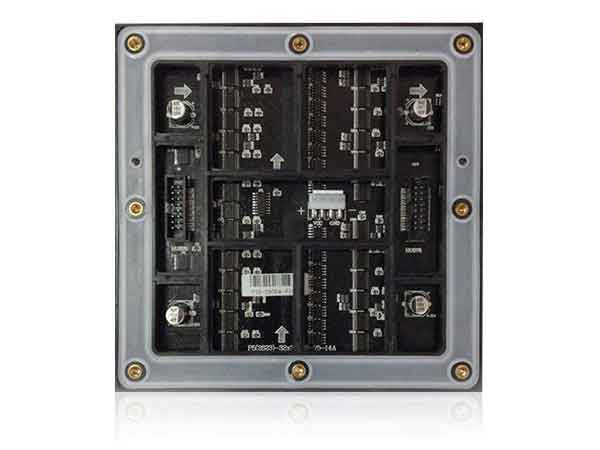

●The 160x160mm Full Color LED Screen Module features a Front IP66 waterproof grade which protects the display from any damage.
●Each and every single part of the 160x160mm Full Color LED Screen Module is watchfully installed by our engineers.
●We provide greater cost effective led display module on the ex-factory price approximately 70 percent less than the price you get from distributor.
●The 160x160mm Full Color LED Screen Module is known for its silence operation and low power consumption.
●The display can be controlLED by 3G, Wi-Fi, HDMI and U-Disk. Intelligent remote control system allows you to control it from anywhere. Change the display content and other settings from anywhere.
●The high brightness and high definition features of the 160x160mm Full Color LED Screen Module ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
