Product DescriptionInquiry
Parameters
|
LED Lamp |
|
|
Type |
SMD2121 black body |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(250-300mcd ) |
|
Chip parameters |
Green (520-525nm) IV:(450-550mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(100-120mcd) |
|
LED Module |
|
|
Pixel Pitch |
5mm |
|

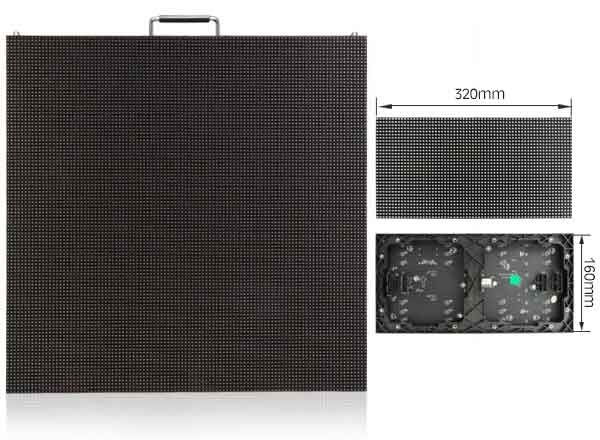

Module Size |
320×160mm |
|
Module Resolution |
64×32=2048(Dots) |
|
Module Weight |
0.4kg |
|
LED Cabinet |
|
|
Pixel Density |
40000 Dots/sqm |
|
Frame Frequency |
no less than 60 frame/sec |
|
Cabinet Resolution |
128×128=16384(Dots) |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|

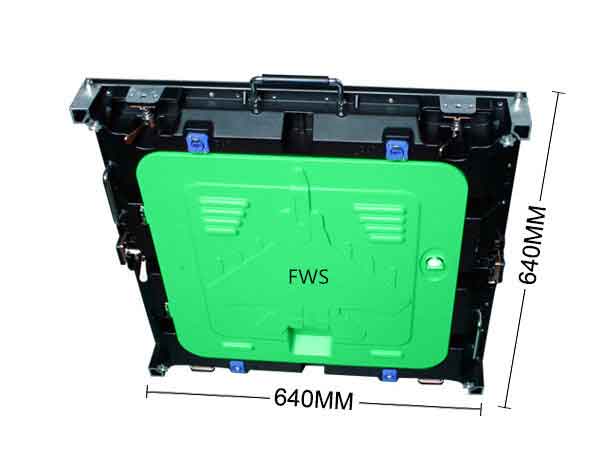

Cabinet Dimension(W*H*D) |
640×640×95mm |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Module Quanty /Cabinet |
2×4=8(Pcs) |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Cabinets Material |
Aluminum-magnesium alloy Cabinet |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Cabinet Weight |
10kg |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
Brightness |
>1500cd/sqm |
|
MTBF( mean time between failures) |
5000 hours |
|
Viewing Angle |
140(Horizontal), 140(Vertical) |
|
Life-span |
100, 000 hours |
|
Nearest Viewing Distance |
8m |
|
Protection Level(front/back) |
IP43/IP54 |
|
Power Consumption (Max) |
800 w/sqm |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Power Consumption (Average) |
250 w/sqm |
|
Working Temperature |
-15oC-50oC |
|
Display Function |
Text, Graphics, Video |
|
Humidity |
15%-85% |
|
Refresh Rate |
>1000Hz |
|
Drive Mode/Driver Position |
Constant driving 1/16 Scan, Combined diver board |
|
Control System |
|
|
Control Mode |
Synchronization/Asynchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
LED Studio ( FWS-linsn ) |
|
Communication Type |
Net cable; 3G, WIFI(Sold separately) |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
|
Control Card Input |
DVI, USB; RJ45, HDMI(Sold separately) |
Introduction
Features:
●PH5 Concert LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition.
●The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.

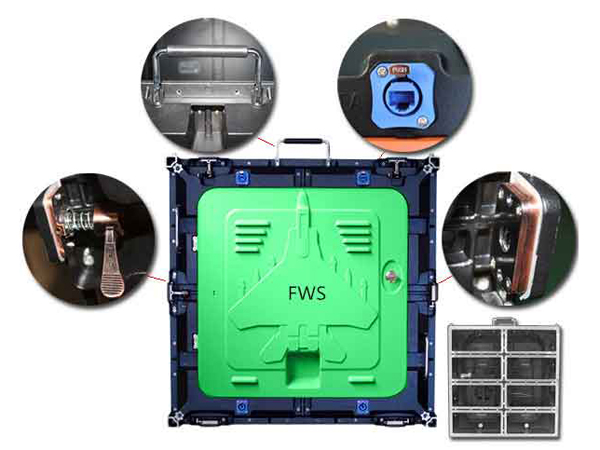

●The cabinet of Fast Lock Rental LED Display features unique rugged design which makes it easy to carry and install.
●You may configure the Fast Lock Rental LED Display as per your requirements and choice.
●The high brightness and high definition features of the Fast Lock Rental LED Display ensures great quality pictures - making it a perfect fit for stage, banks, promotion, station, stadium and other indoor places.
●High refresh rate and gray scale ensures the picture quality remains seamless.
●The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display.
●IThe displays are created for supreme quality indoor performance, and it delivers the same with perfection.
●We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan),Epistar, Opto (Taiwan), MBI, TMS, PWM and MingYang.

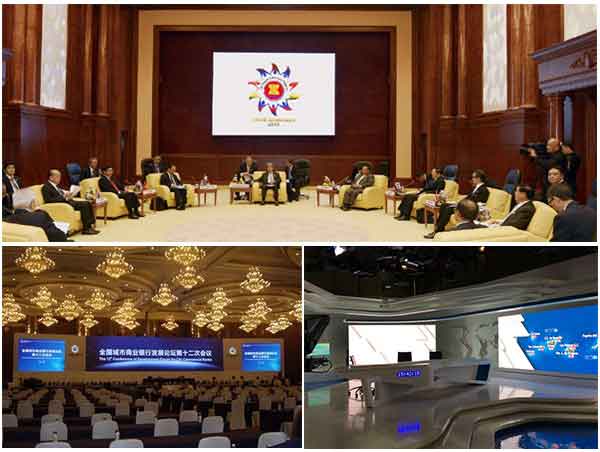

Case：
