Product DescriptionInquiry
Parameters
|
Pixel Pitch |
1.875mm |
|
Pixels Density |
284444dots/sqm |
|
Pixel Configuration |
1R1G1B |
|
Package Mode |
SMD 3IN1 -1010 |
|
Chip Parameters |
Red (620-625nm) IV:(18-30mcd) |
|
Chip Parameters |
Green (516-530nm) IV:(50-75mcd) |
|
Chip Parameters |
Blue (465-475nm) IV:(6.5-9.5mcd) |
|
Module Size(W*H*D) |
120*120*17mm |
|
Module Weight |
0.6kg |
|
Module Resolution(W*H) |
64*64dots |
|
Module Max Power |
25W |
|
Drive Type |
Constant drive |
|
Scan Mode |
1/32scan |
|
Port Type |
HUB75E |
|
Brightness of White Balance |
>1200cd/sqm |
|
Cabinet Dimension(W*H*D) |
480*480*85mm |
|
Cabinets Material |
Die Casting Aluminum Cabinet |
|
Cabinet Weight |
18kg |
|
Module Quanty /Cabinet |
4×4=16(Pcs) |
|
Cabinet Resolution(W*H) |
256×256=65536(Dots) |
|
Power Supply |
5V/60A*1 pcs |
|
Thermal Discharge |
fan 1pcs |
|
Best Viewing Distance |
2m-10m |
|
Best Viewing Angle |
140°(W) 120°(H) |
|
Temperature |
storage:-35oC-85oC; working:-20oC-50oC |
|
Relative Humidity |
10%-95% |
|
Working Voltage |
AC220V±10% |
|
Average Power Consumption |
300W/sqm |
|
Max.Power Consumption |
900W/sqm |
|
Current |
<20mA(single LED) |
|
CPU |
Pentium4 or above P4 |
|
Operation System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Control Method |
Synchronization |
|
Driving Device |
Constant drive IC |
|
Refresh Frequency |
>600HZ |
|
Color Grayscale / Gray Scale per Color |
16 bit / 65536 level |
|
Life-span |
50000 hours |
|
MTBF |
>10000hours |
|
Power Switch |
Automatic switch |
|
Display Mode |
>800*600/1024*768 |
|
Protection Level(front/back) |
IP31/IP54 |
|
Software |
Nova Studio(FWS-Nova) |
|
Language |
Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese,German ,Russian |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
Introduction
Features:

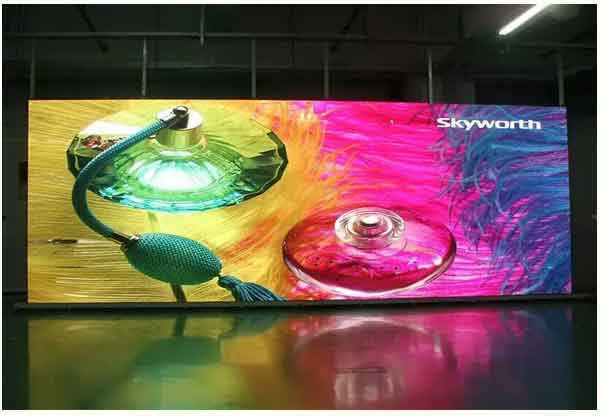

●The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days.
●You may configure the Small Pixel LED Display as per your requirements and choice.Adjust the brightness, gray scale and picture quality as per your choice.
●Perfect calibration between brightness and chromaticity delivers best picture quality at every place.
●It's uses driver ICs with inbuilt functions to remove the ghost effects and blur from pictures, leaving behind crystal clear pictures and videos.
●The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic.
●There are fast lock and locating taps on the cabinets for quick assembling and disassembling.

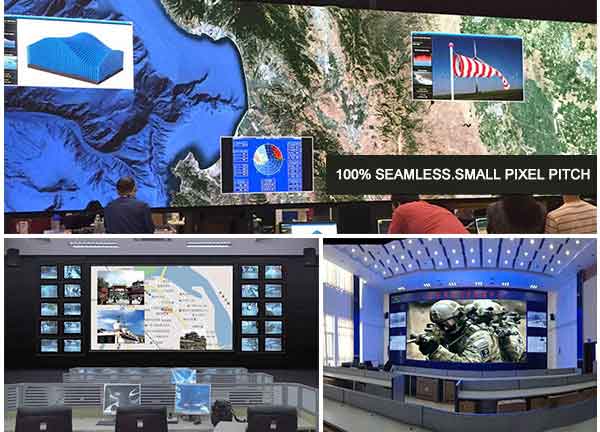

●The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings. You may use it at indoor areas like hotel, meeting, malls, stages, stadium and at many more indoor places.
Case
