Product DescriptionInquiry
Parameters
|
LED Lamp |
|
|
Type |
DIP546 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(1000-1200mcd) |
|
Chip parameters |
Green (520-525nm) IV:(2000-2500mcd) |
|
Chip parameters |
Blue(470-475nm) IV:(500-650mcd) |
|
LED Module |
|
|
Pixel Pitch |
20mm |
|
Module Size |
320×160mm |
|
Module Resolution |
16×8=128(Dots) |
|
Module Weight |
0.65kg |
|
LED Cabinet |
|
|
Pixel Density |
2500 Dots/sqm |
|
Frame Frequency |
no less than 60 frame/sec |
|
Cabinet Resolution |
64×64=4096(Dots) |
|
Input Voltage |
AC110-220V±10%, 50/60Hz |
|

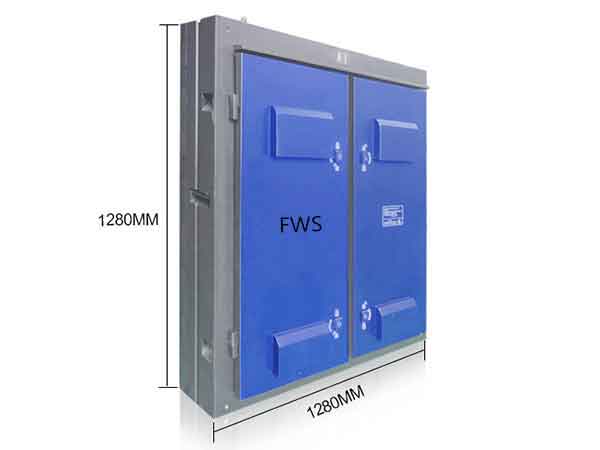

Cabinet Dimension(W*H*D) |
1280×1280×185mm |
|
Output Voltage |
DC-5V, 40A/60A/80A |
|
Module Quanty /Cabinet |
4×8=32(Pcs) |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Cabinets Material |
Aluminum |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Cabinet Weight |
25kg |
|
Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
|
Brightness |
>6500cd/sqm |
|
MTBF( mean time between failures) |
5000 hours |
|
Viewing Angle |
110(Horizontal), 55(Vertical) |
|
Life-span |
100, 000 hours |
|
Nearest Viewing Distance |
23m |
|
Protection Level(front/back) |
IP66/IP54 |
|
Power Consumption (Max) |
800 w/sqm |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Power Consumption (Average) |
250 w/sqm |
|
Working Temperature |
-30oC~50oC |
|
Display Function |
Text, Graphics, Video |
|
Humidity |
15%~85% |
|
Refresh Rate |
>800Hz |
|
Drive Mode/Driver Position |
Static Combined driver board |
|
Control System |
|
|
Control Mode |
Synchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card, Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
LED Studio(FWS-linsn) |
|
Communication Type |
Net cable |
|
Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
|
Certificate |
CE, ROHS, FCC, ISO9001, TUV |
|
Control Card Input |
DVI, USB, RJ45, HDMI(Sold separately) |
Introduction
Features:
●The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience.

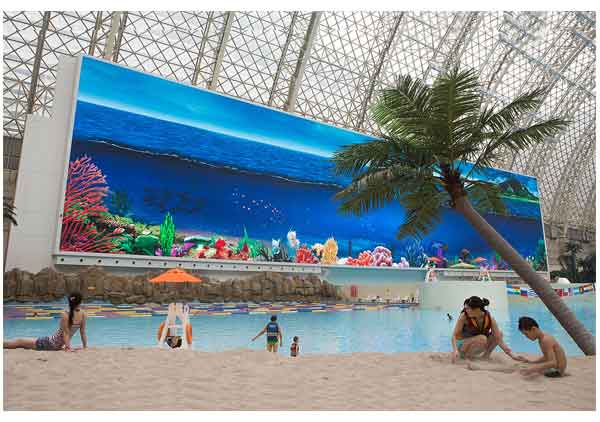

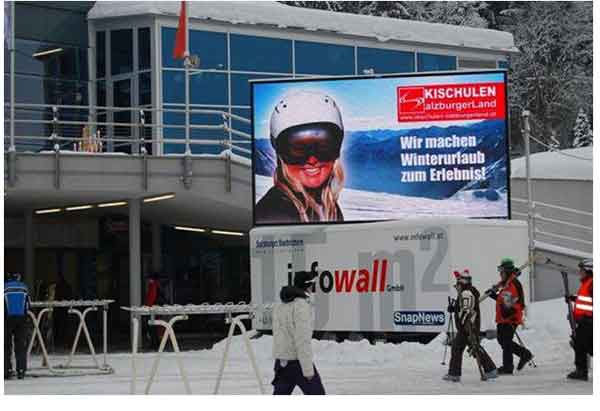

●Highly usable for outdoor advertising such as seaside, swimming pools, water parks, outdoor places and low temperature conditions.
●The double door aluminum cabinet and best quality wire keeps it safe, and its high resolution screen presents big and clear images.
●The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install.
●Adopted MBI constant current driver which can make refresh rate up to 3000Hz load with single receiving card in one cabinet.High quality product ensure stable and clear image output.

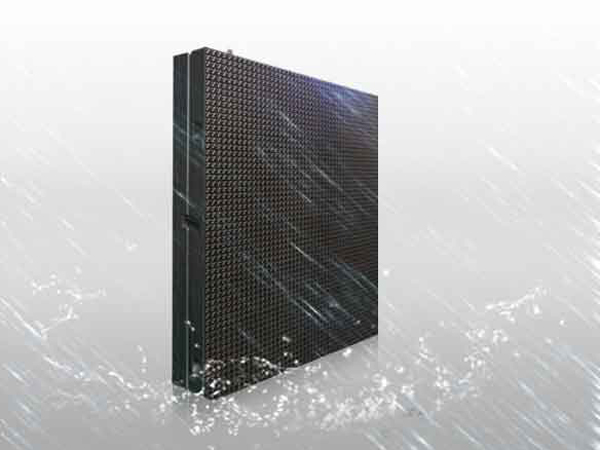

●The Anti-Low Temperature LED Screen features a Front IP66 waterproof grade which protects the display from any damage.
●The outdoor advertising LED display works seamlessly in a wide temperature range of -35 degree to 50 degrees.
●The display features a wide viewing angle of horizontal 120° and vertical 70° which reaches more viewers.
Case
