Parameters
|
LED Lamp |
|
|
Type |
SMD3535 |
|
Brand |
Epistar |
|
Arrangement |
1R1G1B |
|
Chip parameters |
Red (620-625nm) IV:(800-960mcd) |
|
Chip parameters |
Green (520-525nm) IV:(1350-1650mcd) |
|
Chip parameters |
Blue (470-475nm) IV:(330-400mcd) |
|
LED Module |
|
|
Pixel Pitch |
10mm |
|
Module Size |
320×160mm |
|
Module Resolution |
32×16=512(Dots) |
|
Module Weight |
0.47kg |
|
LED Cabinet |
|
|

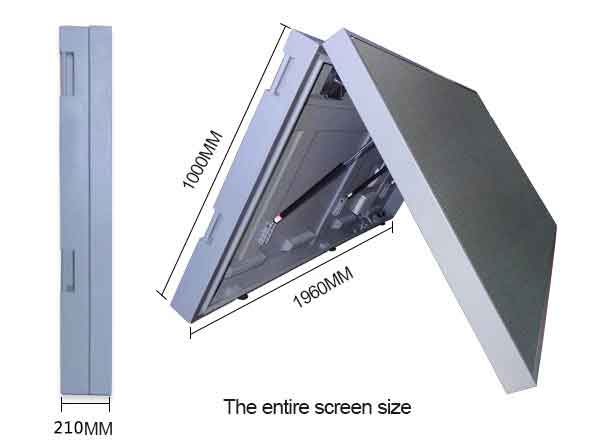

The entire screen size(W*H*D) |
1960×1000×180mm |
|

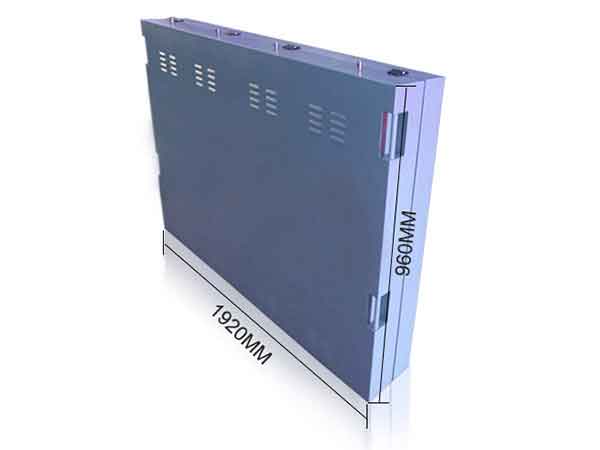

Display Dimension（W*H） |
1920×960mm |
|
The entire screen resolution |
192×96=18432(Dots) |
|
Frame Frequency |
no less than 60 frame/sec |
|
Cabinets Material |
Steel |
|
Input Voltage |
AC110-220V±10%,50/60Hz |
|
Cabinet Weight |
148kg |
|
Output Voltage |
DC-5V,40A/60A/80A |
|
Brightness |
≥6000cd/㎡ |
|
Color Grayscale |
16bit |
|
Gray Scale per Color |
65536 level |
|
Viewing Angle |
120(Horizontal),120(Vertical) |
|
Color Processing |
R(1024)×G(1024)×B(1024) |
|
Nearest Viewing Distance |
11m |
|
Brightness Adjustment |
256 color levels,can be adjusted manually and automatically optional |
|
Total Power Consumption (Max) |
900W/H |
|
MTBF( mean time between failures) |
5000 hours |
|
Total Power Consumption (Average) |
250W/H |
|
Life-span |
100,000 hours |
|
Display Function |
Text,Graphics,Video |
|
Protection Level(front/back) |
IP66/IP54 |
|
Refresh Rate |
≥800Hz |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Working Temperature |
-30℃~50℃ |
|
Drive Mode/Driver Position |
Constant driving 1/4 Scan，Combined diver board |
|
Humidity |
15%~85% |
|
Control System |
|
|
Control Mode |
Synchronization/Asynchronization |
|
Input Signal |
AVI/MPG/MPEG/TXT.etc |
|
Control System |
Sending Card, Receiving Card,Receiving HUB |
|
PC Operating System |
Microsoft Windows 10 ,Windows 7 and XP |
|
Software |
Led show ( FWS-ECSR ) |
|
Communication Type |
WIFI, Net cable，3G（Sold separately） |
|
Language |
Chinese，English |
|
Certificate |
CE,ROHS,FCC,ISO9001，TUV |
|
Control Card Input |
RJ45，HDMI，USB |
Introduction
Features:
● Integrated design, it can be fixed installed in front of the store but also moving by wheels on the bottom. Plug on and play is very convenient.
● PH10 outdoor advertising player support AVI/MPG/MPEG/TXT and so on input signal.
● Several remote control methods support, such as cable connection, Wi-Fi and 3G. You can change the advertising content easily.
● Perfect appearance proportion design for chain store advertising, hotel reception and airport information public. Especially for products display such as clothes, drink and foods etc.
● High gray scale level and wide viewing create a vivid picture and make your advertising reach more people and more easy to catch their eyes.
● Noise free make it looks like a delicate and quiet beauty. You can also connect amplifier and speaker rock the world.
● The brightness can be manual or automatic adjusted which friendly to environment and save energy for you.
● IP66 waterproof, anti-corrosion metal shell protect player better. All outdoor environment use available.
● Smart setting, you can set the time that you want it turned on or off.
● Lifetime free maintenance and online technical guidance service offered.
Outdoor LED advertising player applications: commercial district CBD, high traffic booths, bus stations, airports, railway stations, docks, Park Plaza, leisure facilities, tourist attractions, high-end residential, catering industry, government and corporate propaganda, etc.

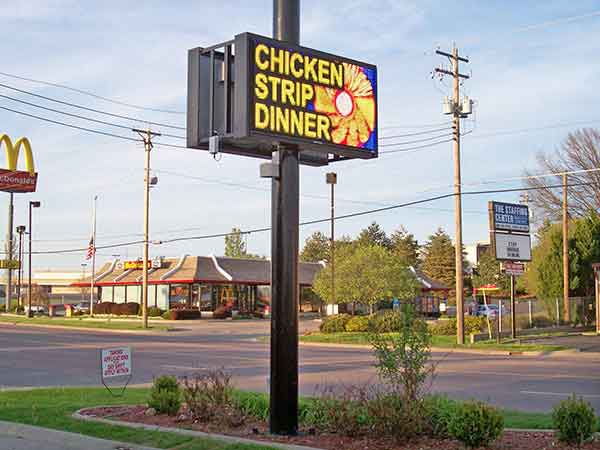

Case
