Profile Aluminum P3.91

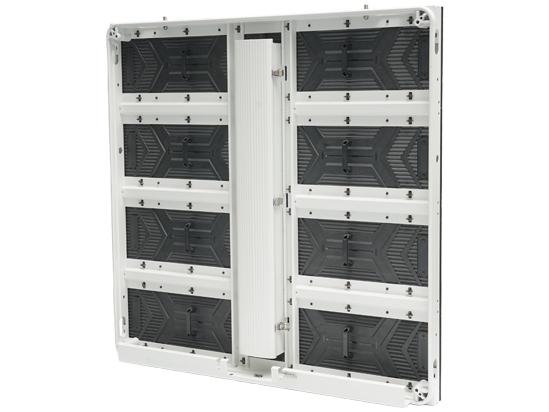

● Aluminum magnesium alloy cabinet never deformation and features with beautiful appearance and lightweight.
● Ultra-slim cabinet decline the volume of flight case and transportation cost.
● Seamless splice make more cabinet in one without any gap.

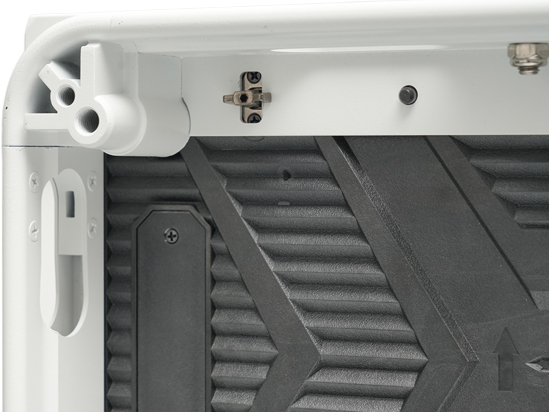

● Fast lock and spring plunger design for fast install and dismantle. Especially suitable for stage show, concert, promotion, exhibition and sport game live use.
● Die-casting aluminum magnesium alloy feature with low power consumption, automatic heat dissipation.
● Power has been inset in the cabinet and signal work lamp help you fast detect fault and fast fix it
Inquiry

Product DescriptionInquiry


Product Model
 P3.91
Product Dimensions
 (W]500mmx(H]500mmxt0]90mm/[W]500mmx[H]1000mmx [0]90mm
Product weight
 7.5kg [500x500 snecificatiom/16kg [500x1000 specificatiom]
Overall Dimensions
 Customized ner project
Splicing seam
 Seamless $plicing
Applicable gcenarios
 Stage、Performance Radio & Television、 $tudios PromotionalEvents、 Banquet Events


Indoor version: 600-800 cd/㎡ brightness – great for malls/conference rooms, no glare.
Crisp display: 65,536 dots/㎡, 16-bit grayscale (28.1T colors), ≥1920Hz refresh (3840Hz premium).
Flicker-free, vivid colors, 140°H/120°V wide view.
Use cases: TV studios, fitness screens, airport/railway info, stadiums. Special models for
street ads, museum/science center immersive displays.

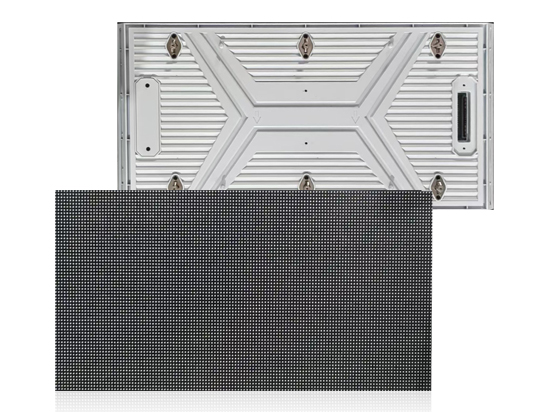

Module Picture

Product Spacing：1.953p、2.604p、3.91p、4.81p



Product Parameters



Parameters
 Pixel Structrue
 Parameters Values
 SMD1921 3 in 1 LED
Pixel Pitch（mm）
 3.91
 Module Definition（W×H）
 3840Hz-7680Hz
Module Size（mm）
 250（W）× 250（H）
 Refresh Rate（Hz）
 3840Hz-7680Hz
Cabinet Module Composition（W×H）
 2 × 4
 Cabinet Definition （W×H）
 128 × 256
Cabinet Material
 die-cast aluminum
 Cabinet Pixel Density （Pixel/m2）
 65536
Maintainece Method
 Matained from the Front / Behind
 Cabinet Size（mm） (W×H×D)
 500（W）× 1000（H）× 80（D）


Installation to achieve seamless splicing

Hoisting installation, vertical installation

Light and thin box, easy to disassemble and assemble

Adopting new structural design, beautiful appearance, not easy to deform and easy to splice

Packing Method

We use premier cardboard and neutural packing to pack products. EPEcotton and cardboard corner

gurad are installed inside to effectively avoid product damage inflicted by collision during transportation.
